Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V E2 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

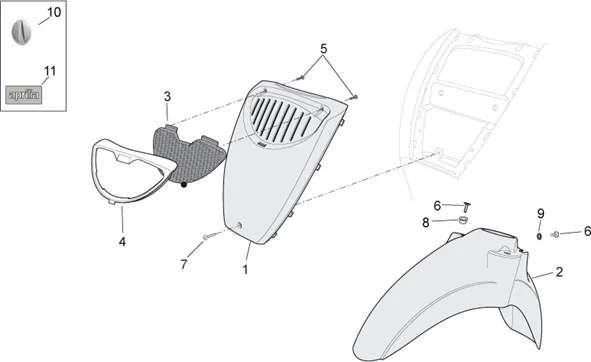

Chassis : 28.06 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/590/Scarabeo_50_4T_4V_E2_2009_28.06.PNG)
1 |
AP8268785 - FRONTAL BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
AP8269088-LEG SHIELD FRONT, BLACK More informationQuantity required : 1 |
|||||||||
|
1 |
AP8269101 - FRONTAL GRIS More informationQuantity required : 1 |
|||||||||
|
1 |
AP8269123 - BOUCLIERBL. BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
AP8269141 - FRONTAL VERT More informationQuantity required : 1 |
|||||||||
|
2 |
63598800XB1 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
2 |
63598800XN2 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
2 |
63598800XER - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
2 |
AP8269115 - GARDE-B AV. BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8269131 - GARDE-BOUE AVANT VERT More informationQuantity required : 1 |
|||||||||
|
3 |
AP8158915-GRILLE More informationQuantity required : 1 |
|||||||||
|
4 |
Enjoliv. grille chromé |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
5 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 2 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
7 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
8 |
WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096 More informationQuantity required : 1 |
|||||||||
|
9 |
AP8144274 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
|
10 |
893235-DECAL More informationQuantity required : 1 |
|||||||||
|
11 |
854964-PLATE More informationQuantity required : 1 |
|||||||||
