Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V E2 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

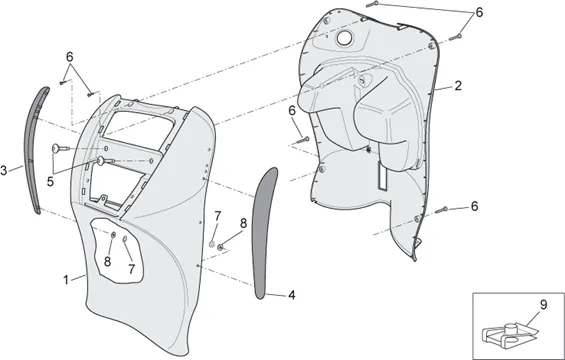

Chassis : 28.07 CARROSSERIE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/590/Scarabeo_50_4T_4V_E2_2009_28.07.PNG)
1 |
89397500XA4 - TABLIER AV.P.BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
63598500XB1 - TABLIER More informationQuantity required : 1 |
|||||||||
|
1 |
63598500XER-LEG SHIELD More informationQuantity required : 1 |
|||||||||
|
1 |
63598500XN2-LEG SHIELD More informationQuantity required : 1 |
|||||||||
|
1 |
89397500XV1 - TABLIER AV VERT More informationQuantity required : 1 |
|||||||||
|
2 |
|
|||||||||
|
2 |
63597300XB1 - TABLIER INTERNE More informationQuantity required : 1 |
|||||||||
|
2 |
63597300XN2 - TABLIER INTERNE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8269120 - TABLIER INTERNE BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
AP8269136 - TABLIER INT. VERT More informationQuantity required : 1 |
|||||||||
|
3 |
AP8258735 - PARE-CHOCS DTE, NOIR; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8258736-PROTECTOR-CHOCS GCHE, BLACK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
5 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
7 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
8 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
9 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 1 |
|||||||||
