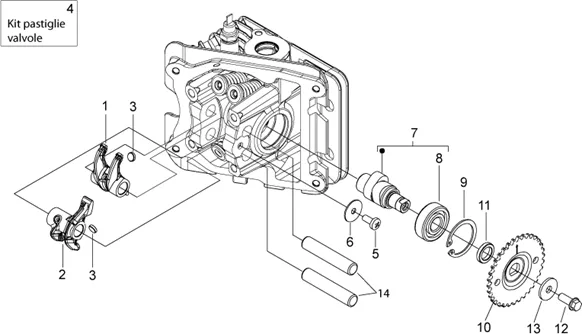

Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V 2014

	P2R reference	69220
	Maker reference	842200

CULBUTEUR INTAKE OEM PIAGGIO 50 FLY, VESPA LX, VESPA-S 4T/APRILIA 50 SCARABEO, SPORT-CITY 4T 2013 <-842200

	P2R reference	69221
	Maker reference	842201

BALANCIER EXHAUST OEM PIAGGIO 50 4T SCARABEO 2009 > 2017-842201

	P2R reference	73216
	Maker reference	CM144319

PASTILLE OF ADJUSTMENT OF VALVE (7. 52X2. 50) OEM PIAGGIO COMMON-CM144319

	P2R reference	73217
	Maker reference	CM144320

PASTILLE DE REGLAGE SOUPAPES (2. 55MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144320

	P2R reference	73218
	Maker reference	CM144321

PASTILLE DE REGLAGE SOUPAPES (2. 60MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144321

	P2R reference	73219
	Maker reference	CM144322

PASTILLE OF ADJUSTMENT OF VALVE (7. 52X2. 65) OEM PIAGGIO COMMON-CM144322

	P2R reference	73220
	Maker reference	CM144323

PASTILLE DE REGLAGE SOUPAPES (2. 70MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144323

	P2R reference	73221
	Maker reference	CM144324

PASTILLE DE REGLAGE SOUPAPES (2. 75MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144324

	P2R reference	73222
	Maker reference	CM144325

PASTILLE OF ADJUSTMENT OF VALVE (7. 52X2. 80) OEM PIAGGIO COMMON-CM144325

	P2R reference	73223
	Maker reference	CM144326

PASTILLE DE REGLAGE SOUPAPES (2. 85MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144326

	P2R reference	73224
	Maker reference	CM144327

PASTILLE DE REGLAGE SOUPAPES (2. 90MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144327

	P2R reference	73225
	Maker reference	CM144328

PASTILLE DE REGLAGE SOUPAPES (2. 95MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144328

	P2R reference	73226
	Maker reference	CM144329

PASTILLE DE REGLAGE SOUPAPES (3. 00MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144329

	P2R reference	73227
	Maker reference	CM144330

PASTILLE DE REGLAGE SOUPAPES (3. 05MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144330

	P2R reference	73228
	Maker reference	CM144331

PASTILLE OF ADJUSTMENT OF VALVE (7. 52X3. 10) OEM PIAGGIO COMMON-CM144331

	P2R reference	73229
	Maker reference	CM144332

PASTILLE DE REGLAGE SOUPAPES (3. 15MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144332

	P2R reference	73230
	Maker reference	CM144333

PASTILLE DE REGLAGE SOUPAPES (3. 20MM) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-CM144333

	P2R reference	66957
	Maker reference	497616

KIT PASTILLES FOR SOUPAPES OEM PIAGGIO 50 4T FLY, TYPHOON, VESPA LX/APRILIA SR-497616

	P2R reference	65383
	Maker reference	0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

	P2R reference	63788
	Maker reference	0040215

WASHER PLATE (5X20X1) OEM PIAGGIO COMMON A LA RANGE-004021

	P2R reference	69350
	Maker reference	845426

CAMSHAFT OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T 4 SOUPAPES, FLY, TYPHOON, VESPA LX, PRIMAVERA, VESPA-S, SPRINT/APRILIA SR MOTARD, SPORT-CITY-845426

	P2R reference	70955
	Maker reference	96926R

BEARING (12X32X10) OEM PIAGGIO COMMON A LA RANGE-96926R

	P2R reference	63822
	Maker reference	0066325

CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006632

	P2R reference	66464
	Maker reference	434943

COURONNE TIMING COTE CAMSHAFT OEM PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T-434943

	P2R reference	69216
	Maker reference	842166

SPACER DE GROUP BALANCIER OEM PIAGGIO 50 COMMON A LA RANGE-842166

	P2R reference	72723
	Maker reference	434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	66501
	Maker reference	436695

WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695

	P2R reference	69217
	Maker reference	842174

SHAFT OF CULBUTEURS OEM PIAGGIO APRILIA 50 SR MOTARD 4T 2013 >/PIAGGIO 50 FLY 4T 2011 > 2013, 50 TYPHOON 4T 2012 >/VESPA LX 50 4T 2009 > 2013-842174
