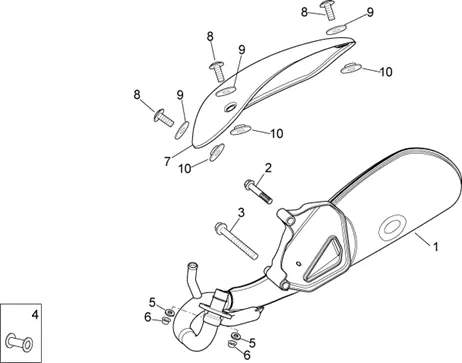

Chassis : 28.21 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/593/Scarabeo_50_4T_4V_2014_28.21.PNG)
1 |
878564 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/0/img/69320.jpg)
2 |
SCREW BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-844470 More informationQuantity required : 2 |
||||||
|
3 |
297582 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
4 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
5 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/7/img/69067.jpg)
6 |
NUT D'ECHAPPEMENT COTE CYLINDER OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-833494 More informationQuantity required : 2 |
||||||
|
7 |
860567 - PROTECTION POT D'ECHAPPEMENT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
|
8 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
9 |
WASHER PLATE (6X18) OEM PIAGGIO COMMON A LA RANGE-841821 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
10 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782 More informationQuantity required : 3 |
