Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

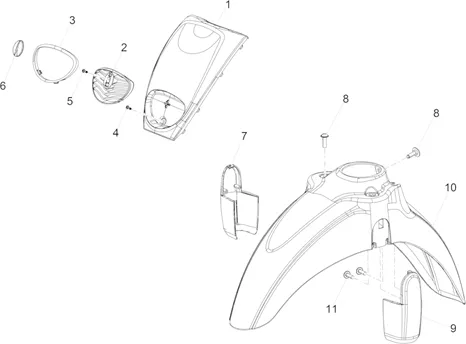

Chassis : 28.06 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/593/Scarabeo_50_4T_4V_2014_28.06.PNG)
1 |
5A000106000XBA-BOUCLIERBL. More informationQuantity required : 1 |
|||||||||
|
1 |
5A000106000XN6 - BOUCLIERBL. More informationQuantity required : 1 |
|||||||||
|
2 |
5A000107-GRILLE More informationQuantity required : 1 |
|||||||||
|
3 |
5A000124-CADRE GRILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
4 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
5 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
|||||||||
|
6 |
5A000117-PLATE More informationQuantity required : 1 |
|||||||||
|
7 |
1B001613000EU - PROTEGE-TIGE DROIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
8 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 3 |
|||||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 3 |
|||||||||
|
9 |
1B001612000EU - PROTEGE-TIGE G More informationQuantity required : 1 |
|||||||||
|
10 |
5A000111000DO - GARDE-BOUE AV BLEU More informationQuantity required : 1 |
|||||||||
|
10 |
5A000111000M9 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
10 |
5A000111000NN - GARDE-BOUE AV NOIR More informationQuantity required : 1 |
|||||||||
|
10 |
5A000111000XB66 - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
|||||||||
