Vehicle Exploded View - APRILIA SCARABEO 4T 50 2V E2 2002-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

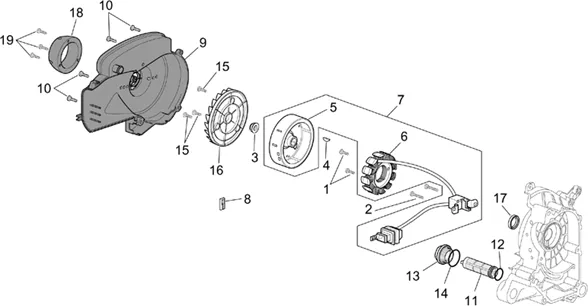

Moteur : 29.38 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/592/Scarabeo_50_4T_2V_E2_2002-2006_29.38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
1 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
2 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
3 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
4 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/7/img/70947.jpg)
5 |
ROTOR D'ALLUMAGE OEM PIAGGIO 50 FLY 4T 2006 >, LIBERTY 4T 2006 >, ZIP 4T 1998 > 2005, VESPA LX 4T 2006 >, VESPA-S 4T 2010 >, PRIMAVERA 4T 2013/APRILIA 50 SCARABEO 4T 2002 >, SPORT-CITY 4T 2008 >-969243 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/1/img/70941.jpg)
6 |
STATOR IGNITION SCOOTER OEM PIAGGIO 50 ZIP 4T, LIBERTY 4T, FLY 4T, VESPA LX 4T, VESPA-S 4T, VESPA PRIMAVERA 4T, VESPASPRINT 4T/APRILIA 50 SCARABEO 4T-969228 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/0/img/70960.jpg)
7 |
IGNITION "PIAGGIO GENUINE PART" 50 FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, LXV, PRIMAVERA, SPRINT, S 4 STROKE -9692975- More informationQuantity required : 1 |
||||||
8 |
969332-GUIDE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/9/2/img/69292.jpg)
9 |
CASING DE COOLING OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T-843567 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
10 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON LA RANGE-259151 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/0/img/66400.jpg)
11 |
CREPINE OIL FILTER OEM PIAGGIO 50FLY 4T, LIBERTY 4T, VESPA LX 4T, VESPA-S 4T, ZIP 4T/APRILIA 50 SPORT-CITY 4T, 125 MOJITO, 125 RS, RX, SX, TUONO-431242 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/1/img/66191.jpg)
12 |
GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/5/img/66195.jpg)
13 |
CAP DE VIDANGE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 STALKER, RUNNER/APRILIA 50 MOJITO, SR H2O, SPORT-CYTY-288548 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
14 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
15 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/0/6/2/6/img/160626.jpg)
16 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA-S 4T, VESPA SPRINT 4T/APRILIA 50 SR MOTARD 4T, SCARABEO 4T-1A011563 More informationQuantity required : 1 |
||||||
|
16 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA-S 4T, VESPA SPRINT 4T/APRILIA 50 SR MOTARD 4T, SCARABEO 4T-1A011563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/8/img/70928.jpg)
17 |
OIL SEAL (17X28X7) DE VILEBREQUIN OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969028 More informationQuantity required : 1 |
||||||
|
18 |
AP8106929-HOSE ASPIRAT ENGINE More informationQuantity required : 1 |
||||||
|
19 |
AP8150318-SCREW More informationQuantity required : 3 |
