Vehicle Exploded View - APRILIA SCARABEO 4T 50 2V E2 2002-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

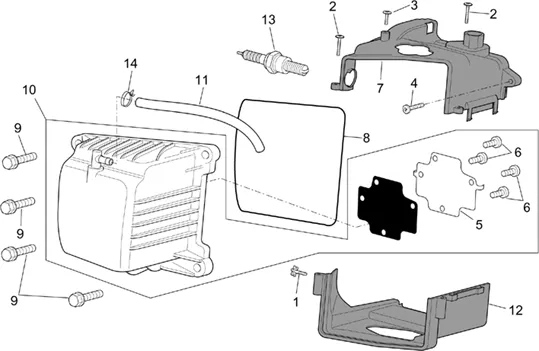

Moteur : 29.36 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/592/Scarabeo_50_4T_2V_E2_2002-2006_29.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/6/img/70966.jpg)
1 |
SCREW COVER ORIGNE PIAGGIO COMMON A LA RANGE-969339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
2 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
3 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 1 |
||||||
4 |
Vis |
||||||
|
5 |
969286-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
6 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 4 |
||||||
|
7 |
COVER DE COOLING OEM PIAGGIO 50 ZIP 4T E2 2006 > 2013-833471 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/9/7/img/69297.jpg)
8 |
843684 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
VITE TCEI M6X20 |
||||||
|
10 |
832964-TAPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
11 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/0/img/71000.jpg)
12 |
COVER DE COOLING OEM PIAGGIO 50 ZIP 4T E2 2006 > 2013-969918 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
13 |
SPARK PLUG CR8EB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-638853 More informationQuantity required : 1 |
||||||
|
14 |
Collier serr. Tube |
