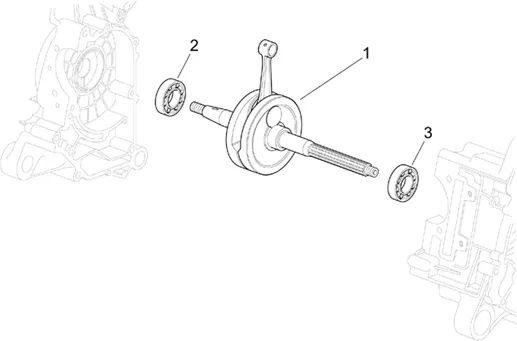

Moteur : 29.33 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/592/Scarabeo_50_4T_2V_E2_2002-2006_29.33.PNG)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/8/img/70978.jpg)
1 |
VILEBREQUIN OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969428 More informationQuantity required : 1 |
||||||
1 |
969203-VILEBREQUIN More informationQuantity required : 1 |
||||||
|
2 |
Roulement 17x42x13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/2/img/68612_20251023155932.jpg)
3 |
BEARING (20X60X13) EMBIELLAGE OEM ENGINE PIAGGIO 50 4T (SIDE LEFT)-82671R More informationQuantity required : 1 |
||||||
|
3 |
969381 - ROULEMENT More informationQuantity required : 1 |
