Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

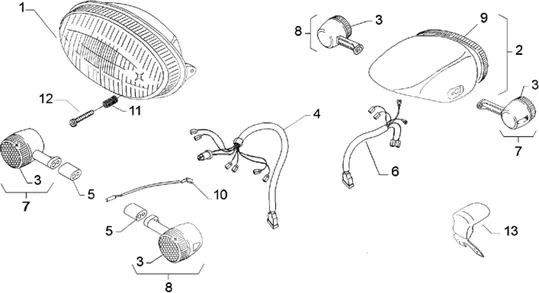

Chassis : 28.32 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/603/Scarabeo_50_2T_Mot_Minarelli_1993-1997_28.32.PNG)
1 |
AP8224010 - PHARE AVANT; More informationQuantity required : 0 |
||||||
|
1 |
Phare avant |
||||||
|
2 |
AP8224270 - FEU ARRIERE More informationQuantity required : 0 |
||||||
|
2 |
Feu arrière; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
3 |
CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680 More informationQuantity required : 0 |
||||||
|
4 |
Câblage feu AV; |
||||||
|
4 |
Câblage feu AV |
||||||
|
4 |
Câblage feu AV |
||||||
|
5 |
Support clignotant; |
||||||
|
5 |
Support clignotant |
||||||
|
6 |
AP8212550 - CABLAGE FEU/CLIGN.AR; More informationQuantity required : 0 |
||||||
|
7 |
AP8212699-CLIGNOT. AV. DR./ARR. GA. More informationQuantity required : 0 |
||||||
|
7 |
Clignot.av.dr./arr.ga.; |
||||||
|
8 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 0 |
||||||
|
8 |
AP8212864 - CLIGNOT.AV.GA./ARR.DR.; More informationQuantity required : 0 |
||||||
|
9 |
AP8212679 - GLACE PHARE AR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
10 |
WIRING DE INDICATOR FRONT OEM PIAGGIO APRILIA 50 SCARABEO, SR H2O-AP8212698 More informationQuantity required : 0 |
||||||
|
11 |
AP8221198-SPRING REGLAGE HEADLAMP More informationQuantity required : 0 |
||||||
|
12 |
AP8150415-SCREW More informationQuantity required : 0 |
||||||
|
13 |
Feu de plaque |
||||||
|
13 |
Feu de plaque; |
