Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

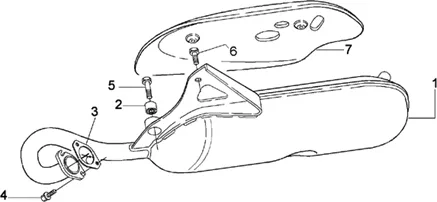

Chassis : 28.24 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/603/Scarabeo_50_2T_Mot_Minarelli_1993-1997_28.24.PNG)
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
AP8219210 - POT D'ECHAPPEMENT More informationQuantity required : 0 |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
2 |
AP8220357-RUBBER MOUNT SILENCER VERT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
3 |
AP8219212-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
4 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
5 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
6 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 0 |
||||||
|
7 |
Protection pot d'échappement; |
||||||
|
7 |
PROTECTION POT ECHAPP |
