Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

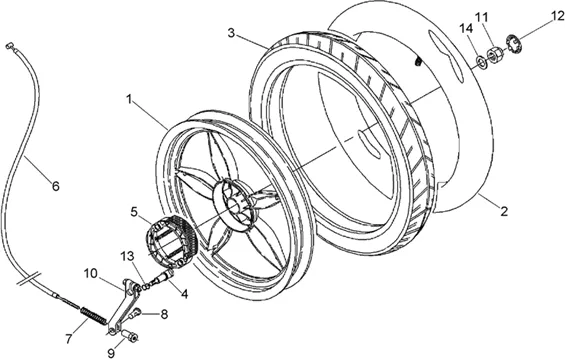

Chassis : 28.29 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/603/Scarabeo_50_2T_Mot_Minarelli_1993-1997_28.29.PNG)
1 |
Roue arrière nue |
||||||
|
4 |
Came frein arrière |
||||||
|
5 |
AP8213133 - SABOTS A RESS-PAIRE More informationQuantity required : 0 |
||||||
|
6 |
AP8214123 - CABLE FREIN ARRIERE; More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/8/img/56388.jpg)
7 |
SPRING DE TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-AP8213137 More informationQuantity required : 0 |
||||||
|
8 |
AP8221120-SPINDLE FIX. CABLE BRAKE More informationQuantity required : 0 |
||||||
|
9 |
AP8101103-REGLAGE LEVER BRAKE REAR More informationQuantity required : 0 |
||||||
|
10 |
AP8232678-LEVER BRAKE REAR BR. GALVA More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
11 |
NUT FLANGE (14X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8152244 More informationQuantity required : 0 |
||||||
|
12 |
AP8220367 - BOUCHON ROUE ARRIERE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/9/img/46639.jpg)
13 |
O-RING OEM PIAGGIO COMMON A LA RANGE-AP8120769 More informationQuantity required : 0 |
||||||
|
14 |
AP8150471-WASHER ELASTIC More informationQuantity required : 0 |
