Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

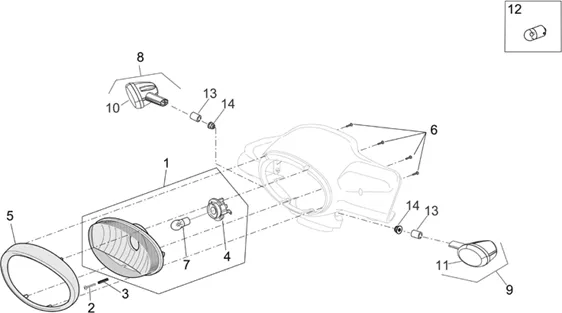

Chassis : 28.28 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/595/Scarabeo_50_2T_E2_Net_2009_28.28.PNG)
1 |
AP8224010 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
2 |
AP8150415-SCREW More informationQuantity required : 1 |
||||||
|
3 |
AP8221198-SPRING REGLAGE HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/2/7/img/57227.jpg)
4 |
DOOR-AMPOULE LAMP UNIT (AMPOULE BA20D) OEM PIAGGIO APRILIA 50 SCARABEO-AP8224041 More informationQuantity required : 1 |
||||||
|
5 |
63597200XB1-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
6 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
7 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
||||||
|
8 |
AP8224698 - ENS. CLIGNOTANT ARR. DROITE More informationQuantity required : 1 |
||||||
|
9 |
AP8224699 - ENS. CLIGNOTANT ARR GAUCHE More informationQuantity required : 1 |
||||||
|
10 |
852439 - TRASPARENTE PER FRECCIA POST.DX More informationQuantity required : 1 |
||||||
|
11 |
852440 - TRASPARENTE PER FRECCIA POST.SX More informationQuantity required : 1 |
||||||
|
12 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
13 |
SPACER (14X10X6. 6) OEM COMMON A LA RANGE PIAGGIO/APRILIA-AP8221017 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
