Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

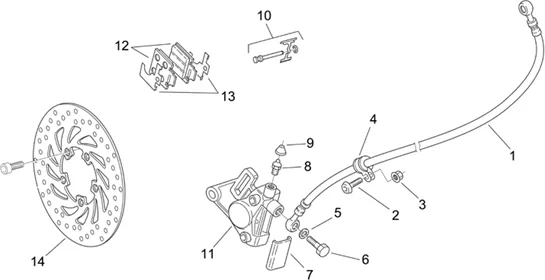

Chassis : 28.26 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/595/Scarabeo_50_2T_E2_Net_2009_28.26.PNG)
1 |
AP8213355-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/1/img/71861.JPG)
3 |
NUT HEXAGONAL AUTOFREINÉ M6-AP8150333 More informationQuantity required : 1 |
||||||
|
4 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
|
7 |
AP8213224 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
|
7 |
AP8213592-COVER PINZA BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
8 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108 More informationQuantity required : 1 |
||||||
|
8 |
AP8213589-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
9 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
|
9 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
|
10 |
AP8213227-STUD + SPRING PINCE More informationQuantity required : 1 |
||||||
|
10 |
AP8213591-PERNO + MOLLA PINZA More informationQuantity required : 1 |
||||||
|
11 |
AP8213371-PINCE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
11 |
AP8213608 - PINZA FRENO ANT.D.30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/5/img/71315.jpg)
12 |
BRAKE PAD OEM PIAGGIO 50 SCARABEO 2001 > 2009-AP8113644 More informationQuantity required : 1 |
||||||
|
12 |
AP8213223 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
13 |
Platine antisiff. AV-couple |
||||||
|
14 |
AP8213381-FRONT BRAKE DISC More informationQuantity required : 1 |
