Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

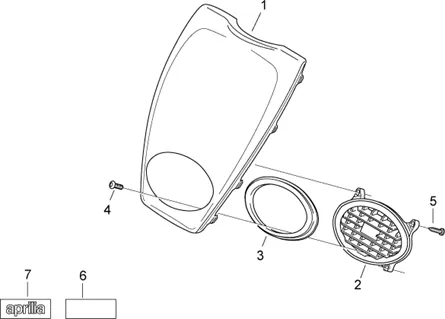

Chassis : 28.07 CARROSSERIE AV. III - FRONTAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/595/Scarabeo_50_2T_E2_Net_2009_28.07.PNG)
1 |
AP8269068 - FRONTAL BLANC More informationQuantity required : 1 |
||||||
|
2 |
851955-GRILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8239711-CADRE GRILLE CHROME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
4 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
5 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
||||||
|
6 |
897410-DECAL More informationQuantity required : 1 |
||||||
|
7 |
893051-PLATE More informationQuantity required : 1 |
