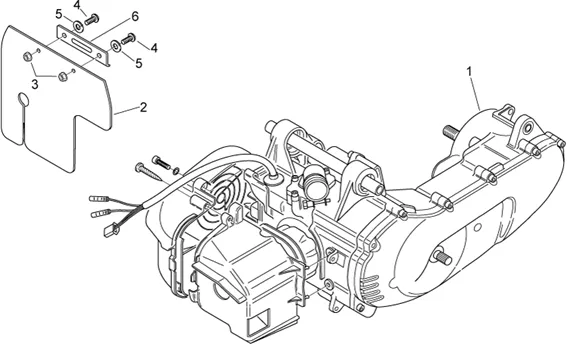

Moteur : 29.22 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/596/Scarabeo_50_2T_E2_Mot_Piaggio_2010-2011_29.22.PNG)
1 |
"PIAGGIO GENUINE ENGINE" APRILIA 50 SCARABEO 2 STROKE -CM1242175- More informationQuantity required : 1 |
||||||
|
2 |
AP8268484-PROTEZIONE CARBURATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
4 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
5 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
||||||
|
6 |
AP8132802-PLATE PROT. AMORTIS. More informationQuantity required : 1 |
