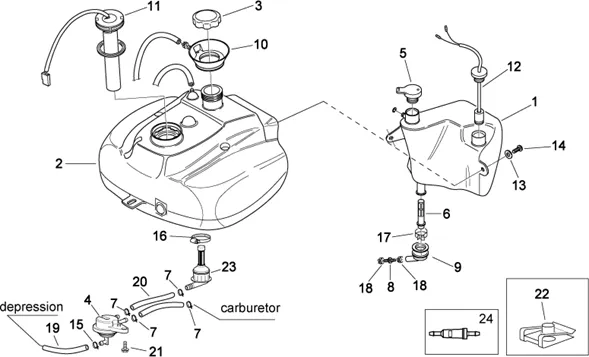

Chassis : 28.20 RESERVOIR HUILE ET CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/596/Scarabeo_50_2T_E2_Mot_Piaggio_2010-2011_28.20.PNG)
1 |
AP8268514 - SERBATOIO OLIO SENZA SFIATO More informationQuantity required : 1 |
||||||
|
2 |
AP8268594-FUEL TANK More informationQuantity required : 1 |
||||||
|
3 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/8/4/img/40784.jpg)
4 |
ROBINET FUEL OEM PIAGGIO 50 SCARABEO 2002 >-860176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
5 |
CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
6 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
7 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
8 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 2 |
||||||
|
9 |
AP8220503 - CAPUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
10 |
AP8220465-RUBBER COLLECTE FUEL More informationQuantity required : 1 |
||||||
|
11 |
CM025716-INDICATEUR NIVEAU FUEL More informationQuantity required : 1 |
||||||
|
12 |
AP8212481-INDICATEUR RESERVE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
13 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
15 |
CLAMP HOSE (D8) OEM PIAGGIO COMMON A LA RANGE-AP8120179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
16 |
CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
17 |
CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743 More informationQuantity required : 1 |
||||||
|
18 |
AP8102378-CLAMP More informationQuantity required : 3 |
||||||
|
19 |
896570-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
20 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
21 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
22 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/6/img/71216.jpg)
23 |
FITTING DE TANK OEM PIAGGIO APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJIT, 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-AP8104071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/7/6/img/67776.jpg)
24 |
FUEL FILTER OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, DERBI SENDA, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO-624522 More informationQuantity required : 1 |
