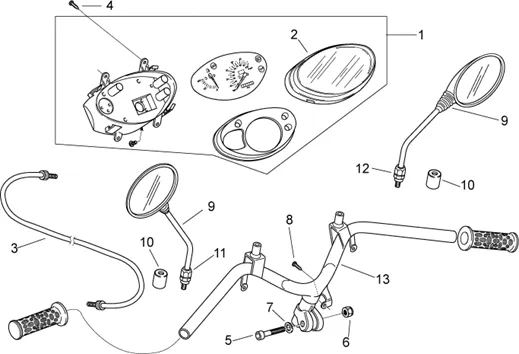

Chassis : 28.18 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/596/Scarabeo_50_2T_E2_Mot_Piaggio_2010-2011_28.18.PNG)
1 |
642969 - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/5/img/67965.jpg)
2 |
VITRE DE PANEL DE EDGE OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SCARABEO 2010 > 2018-642155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/8/1/img/56581.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 SCARABEO 2001 > More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
4 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
||||||
|
5 |
AP8150467-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
7 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
|
8 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 3 |
||||||
|
9 |
AP8201984-MIROIR MIRROR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/9/1/img/56891.jpg)
10 |
AP8220462-SOUFFLET EN RUBBER More informationQuantity required : 2 |
||||||
|
11 |
AP8201987-NUT WITH PINCE CTTE GCHE More informationQuantity required : 1 |
||||||
|
12 |
AP8201986-NUT WITH PINCE CTTE DTE More informationQuantity required : 1 |
||||||
|
13 |
1B001604-HANDLEBAR WITH P. I. More informationQuantity required : 1 |
