Vehicle Exploded View - APRILIA SCARABEO 2T 50 Carburatore E4 Classic 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

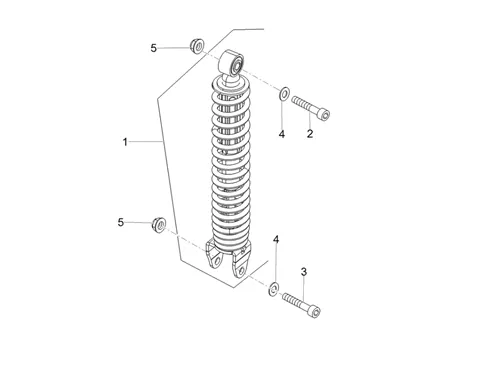

Suspensions : 04.080 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/860/Scarabeo_50_2T_Carburatore_E4_Classic_2018_(EMEA)_04.080.png)
1 |
REAR SHOCK ABSORBER OEM PIAGGIO X8-1C003319 More informationQuantity required : 1 |
||||||
|
2 |
AP8152325-SCREW FLANGE More informationQuantity required : 1 |
||||||
|
3 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
4 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
