Vehicle Exploded View - APRILIA SCARABEO 2T 50 Carburatore E4 Classic 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

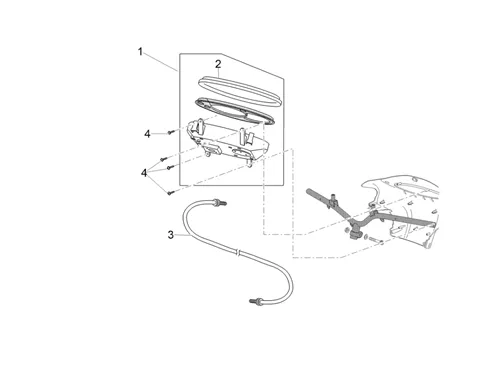

Feux - instruments : 08.020 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/860/Scarabeo_50_2T_Carburatore_E4_Classic_2018_(EMEA)_08.020.png)
Search
1 |
1D000225-GROUP INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/5/img/67965.jpg)
2 |
VITRE DE PANEL DE EDGE OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SCARABEO 2010 > 2018-642155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/8/1/img/56581.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 SCARABEO 2001 > More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
4 |
SCREW BTR CARROSSERIE (3X12) OEM PIAGGIO COMMON A LA RANGE-AP8152334 More informationQuantity required : 4 |
