Vehicle Exploded View - APRILIA SCARABEO 2T 50 Carburatore E4 Classic 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

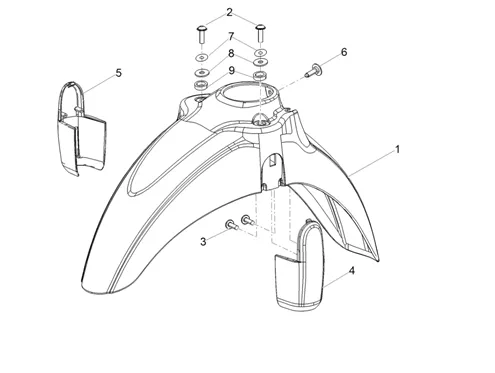

Carrosserie : 02.030 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/860/Scarabeo_50_2T_Carburatore_E4_Classic_2018_(EMEA)_02.030.png)
1 |
1B005235000XB6 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
1 |
1B005235000DO - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
1 |
1B005235000XN2 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
2 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
|||||||||
|
4 |
Protège-tige G |
|||||||||
|
5 |
Protège-tige droit |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
7 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
8 |
WASHER PLATE (6X18) OEM PIAGGIO COMMON A LA RANGE-841821 More informationQuantity required : 2 |
|||||||||
|
9 |
1B005246-SPACER More informationQuantity required : 1 |
|||||||||
