Vehicle Exploded View - APRILIA SCARABEO LIGHT 200 Scarabeo 200 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

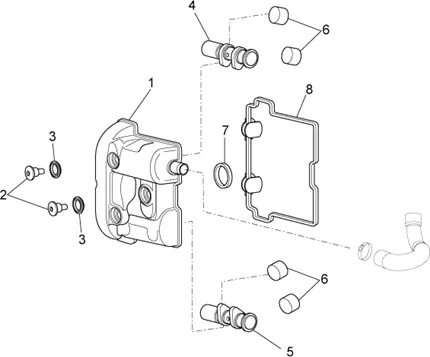

Moteur : 29.45 ARBRE À CAMES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_29.45.PNG)
1 |
JC70005X00300-COVER-CYLINDER HEAD More informationQuantity required : 1 |
||||||
|
2 |
AP3ATN000118-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/2/3/img/71123.jpg)
3 |
GASKET SCREW COVER DE CYLINDER HEAD OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2007 >, 125 RS4 2011 >-AP3CAA000399 More informationQuantity required : 4 |
||||||
|
4 |
AP3CBA000674-SHAFT 180 CC More informationQuantity required : 1 |
||||||
|
4 |
AP3CBA000675-SHAFT 125 CC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/2/6/img/71126.jpg)
5 |
CAMSHAFT OEM PIAGGIO APRILIA 125 RS, TUONO, RX, SX, SCARABEO-LIGHT 2010 >-AP3CBA000677 More informationQuantity required : 1 |
||||||
|
6 |
POUSSOIR DE VALVE (2, 20) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/2/img/73382.jpg)
6 |
POUSSOIR DE VALVE (2, 25) OEM PIAGGIO 125 RS 4T, TUONO 4T, RX, SX 4T APRILIA E3/E4 2020 <-CM222702 More informationQuantity required : 1 |
||||||
|
6 |
POUSSOIR DE VALVE (2, 30) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/4/img/73384.jpg)
6 |
POUSSOIR DE VALVE (2, 35) OEM PIAGGIO 125 RS 4T, TUONO 4T, RX, SX 4T APRILIA E3/E4 2020 <-CM222704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/5/img/73385.jpg)
6 |
POUSSOIR DE VALVE (2, 40) OEM PIAGGIO 125 RS 4T, TUONO 4T, RX, SX 4T APRILIA E3/E4 2020 <-CM222705 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/6/img/73386.jpg)
6 |
CUP DE VALVE (2, 45) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222706 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/7/img/73387.jpg)
6 |
POUSSOIR DE VALVE (2, 50) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222707 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/8/img/73388.jpg)
6 |
POUSSOIR DE VALVE (2, 55) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T 2011 > 2020-CM222708 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/8/9/img/73389.jpg)
6 |
POUSSOIR DE VALVE (2, 60) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T 2011 > 2020-CM222709 More informationQuantity required : 1 |
||||||
|
6 |
POUSSOIR DE VALVE (2, 65) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222710 More informationQuantity required : 1 |
||||||
|
6 |
POUSSOIR DE VALVE (2, 70) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222711 More informationQuantity required : 1 |
||||||
|
6 |
POUSSOIR DE VALVE (2, 75) OEM PIAGGIO APRILIA 125 RS 4T, TUONO 4T, RX, SX 4T-CM222712 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/9/6/img/70496.jpg)
8 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2007 >, 125 RS4 2011 >, TUONO 2017 >-873651 More informationQuantity required : 1 |
