Vehicle Exploded View - APRILIA SCARABEO LIGHT 200 Scarabeo 200 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

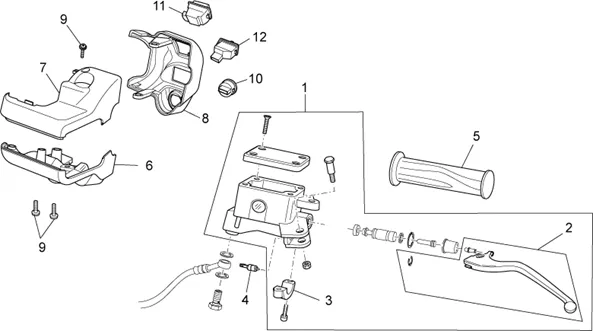

Chassis : 28.20 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_28.20.PNG)
1 |
JC69600X94000-MA? T. CYL. BRAKE REAR More informationQuantity required : 1 |
||||||
|
2 |
AP8133809-LEVA BRAKE * More informationQuantity required : 1 |
||||||
|
3 |
AP8213586-CAVALLOTTO LEVA BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
4 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
5 |
JC57211X92000-GRIP G More informationQuantity required : 1 |
||||||
|
6 |
JC56361X92000-COQUE INFERIEURE More informationQuantity required : 1 |
||||||
|
7 |
JC56362X92000-COQUE SUP. G More informationQuantity required : 1 |
||||||
|
8 |
JC56363X92000-LOG. COMMANDES EL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
9 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/1/1/8/img/63118.jpg)
10 |
BUTTON AVERTISSEUR OEM PIAGGIO 125-200 SCARABEO 2007 > 2012-JC37710X92000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
11 |
SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/4/img/67984.jpg)
12 |
SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795 More informationQuantity required : 1 |
