Vehicle Exploded View - APRILIA SCARABEO LIGHT 200 Scarabeo 200 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

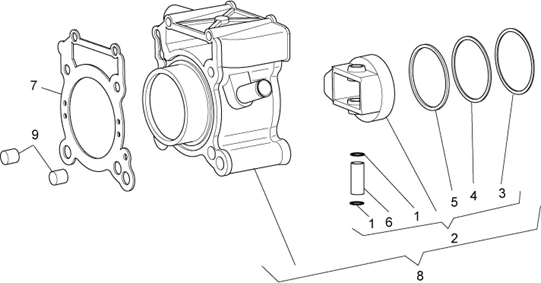

Moteur : 29.43 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_29.43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/5/img/146185.jpg)
1 |
CLIPS/CIRCLIPS SHAFT OF PISTON OEM APRILIA 125 RS, RX, SX 2011 >-1A007518 More informationQuantity required : 2 |
||||||
2 |
PISTON COMPLETE (DIA 58/CAT " M ") OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2009 > 2012-8953440001 More informationQuantity required : 1 |
||||||
|
2 |
PISTON COMPLETE (DIA 58/CAT " N ") OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2009 > 2012-8953440002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/5/img/70825.jpg)
2 |
PISTON COMPLETE (DIA 58/CAT " O ") OEM PIAGGIO APRILIA 125 SCARABEO LIGHT 2009 > 2012-8953440003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/6/img/70826.jpg)
2 |
PISTON (Ø 58/CAT "P") "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2009>2012 -8953440004 More informationQuantity required : 1 |
||||||
|
2 |
8953450001 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
2 |
8953450002 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
2 |
8953450003 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
2 |
8953450004 - PISTON CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/7/img/70437.jpg)
3 |
PISTON RING DE LAMP OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO, SCARABEO LIGHT-872692 More informationQuantity required : 1 |
||||||
|
3 |
872727-COMPRESSION RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/8/img/70438.jpg)
4 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO, SCARABEO LIGHT-872693 More informationQuantity required : 1 |
||||||
|
4 |
872728-PISTON RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/9/img/70439.jpg)
5 |
PISTON RING RACLEUR OEM PIAGGIO APRILIA 125 RS, RX, SX, TUONO, SCARABEO LIGHT-872694 More informationQuantity required : 1 |
||||||
|
5 |
872729-PISTON RING More informationQuantity required : 1 |
||||||
|
6 |
AP3EDA000268 - AXE More informationQuantity required : 1 |
||||||
|
7 |
CM222801-GASKET 0, 300 More informationQuantity required : 1 |
||||||
|
7 |
CM222802-GASKET 0, 400 More informationQuantity required : 1 |
||||||
|
7 |
CM222803 - JOINT 0,500 More informationQuantity required : 1 |
||||||
|
8 |
895342 - GROUPE CYLINDRE-PISTON-AXE More informationQuantity required : 1 |
||||||
|
8 |
895343 - GROUPE CYLINDRE-PISTON-AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/3/8/img/71138.jpg)
9 |
PION DE CENTRAGE CYLINDER HEAD (12X13) OEM APRILIA 125 TUONO, SX, RX, RS 2018 >/125 DERBI SENDA >-AP3FCN000128 More informationQuantity required : 2 |
