Vehicle Exploded View - APRILIA RX 50 2011-2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

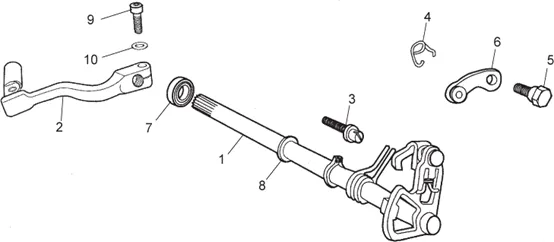

Moteur : 29.17 SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/679/RX_50_2011-2012-2013_29.17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/5/img/176545.jpg)
1 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
|
1 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/2/7/img/64727.jpg)
2 |
SELECTEUR/LEVER DE SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA SX, RX 2006 >-00H027034215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/3/img/94803.jpg)
3 |
SPINDLE/BUTEE GEAR LEVER OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-B018064 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
4 |
SPRING GEAR LEVER 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA RS4 2011 >, 50 SX, RX 2006 >-1A010665 More informationQuantity required : 1 |
||||||
5 |
BOULON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
6 |
LEVER INTERNE SELECTION VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 >, SX, RX-1A010685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
7 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
8 |
WASHER DE CALAGE SPINDLE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8472286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
9 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
10 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
10 |
WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002 More informationQuantity required : 1 |
