Vehicle Exploded View - APRILIA RX 50 2011-2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

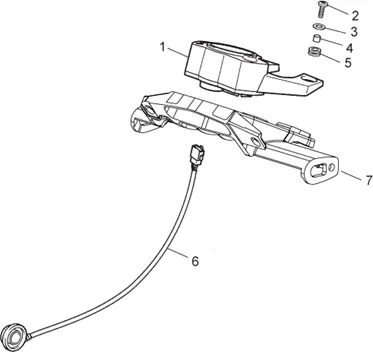

Chassis : 28.11 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/679/RX_50_2011-2012-2013_28.11.PNG)
1 |
866128 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
866129 - COMPTEUR SM DRD 50CC AL.FR More informationQuantity required : 1 |
||||||
|
1 |
866130-PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
1 |
866131 - COMPTEUR SM DRD 50CC INGLAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/7/7/img/70277.jpg)
1 |
SPEEDOMETER "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" GILERA 50 RCR, SMT 2011>/APRILIA 50 RX, SX 2011> -866996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
2 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
2 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
3 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
4 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 1 |
||||||
|
4 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
5 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/7/img/70887.jpg)
6 |
SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 DRD, GPR 2005 > 2011/APRILIA 50 RX 2006 > 2017, SX 2006 > 2017, RS 2006 > 2019-898626 More informationQuantity required : 1 |
||||||
|
7 |
894121-BRACKET More informationQuantity required : 1 |
