Vehicle Exploded View - APRILIA RX 50 2011-2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

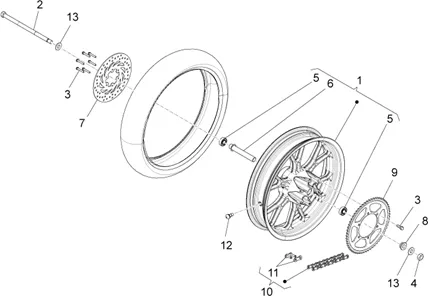

Chassis : 28.29 ROUE ARRIÈRE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/679/RX_50_2011-2012-2013_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/1/5/img/64515.jpg)
1 |
RIM/REAR WHEEL 17 POUCES OEM DERBI 50 SENDA SM > 2005/GILERA 50 SMT 2011 >/APRILIA 50 SX 2011 >-00H01312381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/7/1/img/70071.jpg)
2 |
WHEEL SPINDLE REAR OEM DERBI 50 SENDA DRD X-TREME 2010 > 2017/GILERA 50 SMT, RCR 2010 > 2017/APRILIA SX, RX 2011 > 2017-864866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
3 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 6 |
||||||
|
3 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
4 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
5 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/1/1/img/64511.jpg)
6 |
SPACER DE REAR WHEEL INTERNE OEM PIAGGIO 50 GILERA SMT 2011 > 2019, LAVERDA L SM 2019/DERBI SENDA SM, XTREME 2010 > 2020/APRILIA SX, RX 2006 > 2020-00H01311091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/4/img/70154_20260526172827.jpg)
7 |
BRAKE DISC (D218/INT57/6TROUS) REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA SM 2010 >/APRILIA SX, RX 2011 >, 50-125 RS4 2011 >-866115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/2/img/70322.jpg)
8 |
WASHER WHEEL SPINDLE REAR OEM PIAGGIO 50 GILERA 50 SMT, RCR 2011 >/DERBI SENDA SM 2003 >/APRILIA SX, RX 2011 >-867301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/5/img/69925.jpg)
9 |
COURONNE 53 TEETH OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2006 > 2015/APRILIA RS4 2011 >, RX 2011 >, SX 2011 >-86182R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/6/img/72856.jpg)
10 |
CHAIN 420/130M OEM PIAGGIO 50 APRILIA RS4 2011 >, RX 2006 >, SX 2006 >/DERBI SENDA/GILERA 50 SMT 2006 >, RCR 2006 >-B046219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
11 |
CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
12 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/6/img/50846.jpg)
13 |
WASHER PLATE (15X28X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150208 More informationQuantity required : 2 |
