Vehicle Exploded View - APRILIA RX 50 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

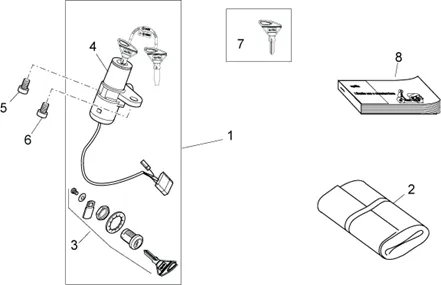

Chassis : 28.14 GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/680/RX_50_2006-2010_28.14.PNG)
1 |
861013-KIT LOCK APRILIA 50-125 RX, SX More informationQuantity required : 1 |
||||||
|
2 |
00H05101561 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
2 |
861120 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
2 |
862566 - TROUSSE ATTREZZI RX50 More informationQuantity required : 1 |
||||||
|
3 |
852164 - SERRURE COFFRE More informationQuantity required : 1 |
||||||
|
4 |
852163-BLOCCASTERZO CON CHIAVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
5 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
6 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
7 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 50-125 RS, SX, RX-AP8140710 More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
|
8 |
|
||||||
|
8 |
|
||||||
|
8 |
