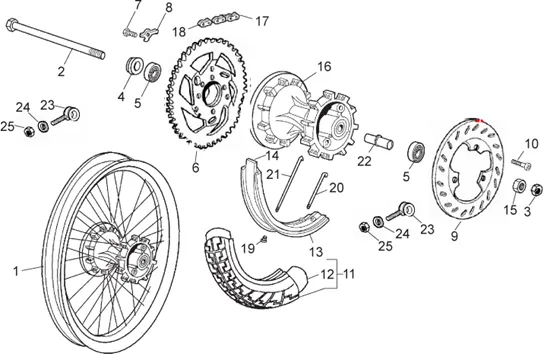

Vehicle Exploded View - APRILIA RX 50 2006-2010

	P2R reference	64698
	Maker reference	00H02404331

00H02404331 - ROUE ARRIERE COMPLETE

	P2R reference	64700
	Maker reference	00H02405331

00H02405331 - ROUE ARRIERE COMPLETE

	P2R reference	70028
	Maker reference	863471

863471 - ROUE ARR.

	P2R reference	41233
	Maker reference	866284

866284 - ROUE ARRIERE NUE

	P2R reference	64484
	Maker reference	00H013042025

WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025

	P2R reference	63905
	Maker reference	00F01210312

REAR WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX -00F01210312

	P2R reference	70324
	Maker reference	867303

SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -867303-

	P2R reference	69410
	Maker reference	847016

BEARING (12X32X10) DE REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX, RS 2006-847016

	P2R reference	64519
	Maker reference	00H01317032

00H01317032-COURONNE REAR Z-53 ZN B

	P2R reference	64518
	Maker reference	00H01317031

00H01317031-COURONNE REAR Z-53

	P2R reference	63626
	Maker reference	000021820005

SCREW TH (8X25) OEM PIAGGIO COMMON A LA RANGE-00002182000

	P2R reference	63700
	Maker reference	000120820225

00012082022 - VIS 8M125X20DIN933/10.9

	P2R reference	63701
	Maker reference	000120830015

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-00012083001

	P2R reference	64468
	Maker reference	00H01302052

00H01302052-ARRETOIR DES BOULONS DISC

	P2R reference	64487
	Maker reference	00H01305531

BRAKE DISC REAR OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 > 2010-00H01305531

	P2R reference	64696
	Maker reference	00H02401282

SCREW REAR BRAKE DISC OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 >-00H02401282

	P2R reference	64506
	Maker reference	00H01309321

00H01309321 - PNEU ARR.VEE RUBBER 110/80-18 62P V122

	P2R reference	64522
	Maker reference	00H01323321

00H01323321 - PNEU 130/70X17 62S VEE RUBBER

	P2R reference	64502
	Maker reference	00H01308361

00H01308361-CHAMRE A AIR ARR.

	P2R reference	64508
	Maker reference	00H01309361

INNER TUBE REAR 17 POUCES OEM PIAGGIO 50 GILERA SMT 2006 > 2010/DERBI SENDA 2010 >/APRILIA SX 2006 > 2010-00H01309361

	P2R reference	64470
	Maker reference	00H01302351

00H01302351-RIM REAR NUE.

	P2R reference
	Maker reference	00H01302354

Jante arrière

	P2R reference	64492
	Maker reference	00H01306353

00H01306353 - JANTE ARRIERE NUE.

	P2R reference	69827
	Maker reference	861023

861023 - JANTE ROUE

	P2R reference
	Maker reference	00D01301401

PROTECTEUR DE CHAMBRE A AIR

	P2R reference	63880
	Maker reference	00D01303401

RIM TAPE OEM PIAGGIO 17/18 ¨ (LARGEUR 40)-00D01303401

	P2R reference	63768
	Maker reference	002621200325

NUT AUTOBLOQUANT/NYLSTOP (M12X1. 50) OEM PIAGGIO COMMON A LA RANGE-00262120032

	P2R reference	64499
	Maker reference	00H01307821

HUB DE REAR WHEEL OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2010/DERBI SENDA 2010 > 2010/APRILIA SX, RX 2006 > 2010-00H01307821

	P2R reference	72856
	Maker reference	B046219

CHAIN 420/130M OEM PIAGGIO 50 APRILIA RS4 2011 >, RX 2006 >, SX 2006 >/DERBI SENDA/GILERA 50 SMT 2006 >, RCR 2006 >-B046219

	P2R reference	64555
	Maker reference	00H01507201

CHAIN WITH CONNECTING LINK "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H01507201

	P2R reference	64533
	Maker reference	00H01501212

CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212

	P2R reference	63627
	Maker reference	000022120705

TETES DE SPOKE AV/AR OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00002212070

	P2R reference	64464
	Maker reference	00H01301691

REAR WHEEL SPOKE "PIAGGIO GENUINE PART" GILERA 50 RCR/APRILIA 50 RX -00H01301691

	P2R reference	64480
	Maker reference	00H01303691

SPOKE DE FRONT WHEEL OEM PIAGGIO GILERA 50 SMT 2006/APRILIA 50 SX 2010 >-00H01303691

	P2R reference	64463
	Maker reference	00H01301501

REAR WHEEL SPOKE "INTERNAL" "PIAGGIO GENUINE PART" GILERA 50 RCR/APRILIA 50 RX -00H01301501 -00H01301501

	P2R reference	64466
	Maker reference	00H01301731

SPOKE REAR WHEEL INNER (L199X3) OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA SM 2000 > 2010-00H01301731

	P2R reference	64483
	Maker reference	00H01304091

SEPARATEUR DE ROULEMENTS REAR WHEEL D12 OEM PIAGGIO GILERA 50 SMT 2006/DERBI SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 >-00H01304091

	P2R reference	64486
	Maker reference	00H01305171

TENDEUR DE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00H01305171

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060
