Vehicle Exploded View - APRILIA RX 50 2006-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

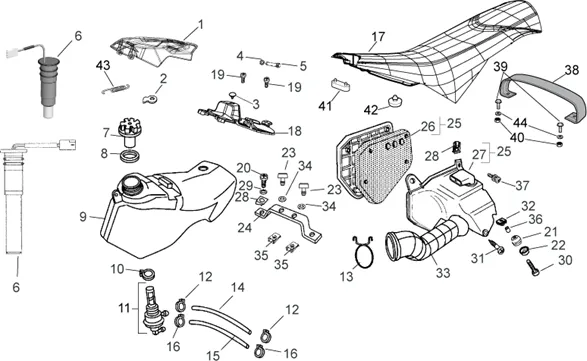

Chassis : 28.04 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/680/RX_50_2006-2010_28.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/3/6/img/69836.jpg)
1 |
HATCH A FUEL OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2016-861081 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/2/img/64282.jpg)
2 |
LEVER LATCH HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 > 2017-00H00604141 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
3 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
4 |
CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/3/img/65043.jpg)
5 |
SHAFT OF HATCH A FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-00H06303752 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/9/0/img/64890.jpg)
6 |
FUEL LEVEL SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010/APRILIA 50 SX, RX 2006>2010 (WIRES COLORS: YELLOW/GREEN+BLUE/WHITE) -00H04302181 More informationQuantity required : 1 |
|||||||||
6 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (FIL JAUNE/GREEN+FIL RED) -864489 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/9/img/72809.jpg)
6 |
JAUGE/SONDE A FUEL OEM DERBI 50 SENDA 2007 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > (FIL JAUNE/VERT + FIL RED)-B043773 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/4/img/63934.jpg)
7 |
CAP TANK D'ESSENCE OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00401131 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/7/img/63897.jpg)
8 |
WASHER CAP DE TANK OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00F00400771 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/5/2/img/64252.jpg)
9 |
FUEL TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA RX, SX 2006 >-00H00406011 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
10 |
CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/0/img/63930.jpg)
11 |
ROBINET FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, RS4 2011 >-00G00400181 More informationQuantity required : 1 |
|||||||||
|
12 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
13 |
CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272 More informationQuantity required : 1 |
|||||||||
|
14 |
00F00403321 - TUBE ESSENCE More informationQuantity required : 1 |
|||||||||
|
15 |
866497-FILTER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/8/img/63918.jpg)
16 |
CLAMP HOSE D7 OEM PIAGGIO COMMON A LA RANGE-00F03710131 More informationQuantity required : 2 |
|||||||||
|
17 |
8610500002 - SELLE ROUGE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/1/4/0/img/41140.jpg)
17 |
8610500003 - SELLE More informationQuantity required : 2 |
|||||||||
|
17 |
86105000W04 - SELLE More informationQuantity required : 2 |
|||||||||
|
18 |
861370 - PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
19 |
SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
20 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
21 |
RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/3/img/63883.jpg)
22 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/6/4/img/69864.jpg)
23 |
SCREW MOUNTING DE SEAT OEM DERBI 50 SENDA 2007 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-861417 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/9/img/64249.jpg)
24 |
BRACKET MOUNTING FUEL TANK OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00H00404051 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/6/img/64626.jpg)
25 |
HOUSING DE AIR FILTER COMPLETE OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 >-00H018095415 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/8/img/157088.jpg)
26 |
ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM DERBI 50 SENDA 2000 </GILERA 50 SMT 2006 >/APRILIA 50 RX 2006 >, SX 2006 >-B0432990P More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/7/1/img/64771.jpg)
27 |
SLEEVE ASPIRATION DE AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX 2006 >-00H03208491 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
28 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
29 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
30 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/1/img/63751.jpg)
31 |
SCREW PARKER (4, 8X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00073481964 More informationQuantity required : 1 |
|||||||||
|
32 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/6/7/img/64767.jpg)
33 |
SLEEVE AIR FILTER 50 A BOX OEM PIAGGIO GILERA 50 RCR, SMT 2006 >/APRILIA 50 RX, SX 2006 >-00H03207261 More informationQuantity required : 1 |
|||||||||
|
34 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
35 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
36 |
SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
37 |
SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021 More informationQuantity required : 1 |
|||||||||
|
38 |
861369 - More informationQuantity required : 1 |
|||||||||
|
38 |
8613690002-BELT PASS. ROUG. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
39 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 2 |
|||||||||
|
40 |
00000023080-NUT INDESSERABLE 8M125 More informationQuantity required : 2 |
|||||||||
|
41 |
AP8126701-RUBBER APPUI SEAT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
42 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/4/img/65044.jpg)
43 |
SPRING HATCH DE TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H063037626 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
44 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 2 |
|||||||||
