Vehicle Exploded View - GILERA RUNNER 50 SP 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

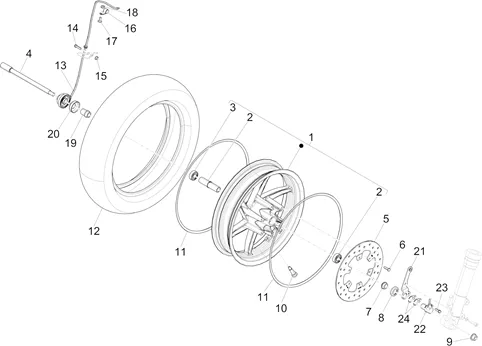

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/162/Runner_50_SP_2010-2012_04.11.PNG)
1 |
56388R000G-FRONT WHEEL More informationQuantity required : 1 |
||||||
|
2 |
6019895 - ENTROISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
3 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/3/img/70913.jpg)
4 |
WHEEL SPINDLE FRONT OEM PIAGGIO 50 NRG, RUNNER GILERA 2005 >-959376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/2/img/67082.jpg)
5 |
BRAKE DISC SCOOT OEM PIAGGIO 50 NRG POWER AV, 50-125 LIBERTY AV, 125 FLY 2012 > 2013 AR, 125-250-300 VESPA GTS AV + AR/GILERA 50 RUNNER 2005 > AV, 125 RUNNER 1998 > 2016 AR-56484R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/5/6/img/90156.jpg)
6 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-667153 More informationQuantity required : 6 |
||||||
|
7 |
649915-ENTROISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
8 |
WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
9 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
10 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
|
11 |
64773600H4-BANDE DECORATION More informationQuantity required : 1 |
||||||
|
11 |
64773600L1-BANDE DECORATION RUNNER More informationQuantity required : 2 |
||||||
|
11 |
64773600RL - BANDE DECORATION More informationQuantity required : 1 |
||||||
|
12 |
949597 - PNEUS 120/70-14" 55L SAVA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/6/3/img/87063.jpg)
13 |
SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 GILERA RUNNER 2005 >-6503086 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
14 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
14 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
15 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
16 |
CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
17 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 1 |
||||||
|
18 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 1 |
||||||
|
19 |
600257-SPACER More informationQuantity required : 1 |
||||||
|
20 |
600258-BUSH More informationQuantity required : 1 |
||||||
|
21 |
668254-CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/5/8/6/img/86586.jpg)
22 |
SENSOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> -6433665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
23 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/2/img/90442.jpg)
24 |
WASHER SENSOR OEM PIAGGIO COMMON A LA RANGE-668780 More informationQuantity required : 4 |
