Vehicle Exploded View - GILERA RUNNER 50 SP 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

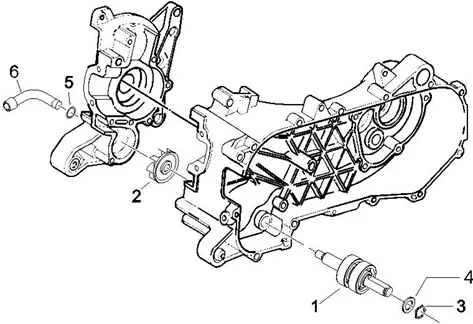

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/162/Runner_50_SP_2010-2012_01.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/9/img/66919.jpg)
1 |
KIT SPINDLE WATER PUMP OEM PIAGGIO 50 NRG 1998 > ZIP SP 2006 >/GILERA 50 RUNNER 1997 >, DNA 1998 >/APRILIA 50 SR H2O 1998 >-497406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/8/img/66748.jpg)
2 |
TURBINE OF PUMP A WATER OEM PIAGGIO 50 NRG/GILERA 50 DNA, RUNNER-487730 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/6/img/66226.jpg)
3 |
CLIPS/CIRCLIPS DE BUTEE SHAFT OF WATER PUMP OEM PIAGGIO 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O-289553 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/7/img/66227.jpg)
4 |
WASHER/RACLEUR WATER PUMP OEM PIAGGIO 50 SR APRILIA, RUNNER GILERA 2005 >-289554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/6/img/66216.jpg)
5 |
GASKET OF FITTING WATER PUMP OEM PIAGGIO 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O LIQUIDE-289254 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/9/9/img/70699.jpg)
6 |
FITTING WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-878910 More informationQuantity required : 1 |
