Vehicle Exploded View - GILERA RUNNER 50 SP 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

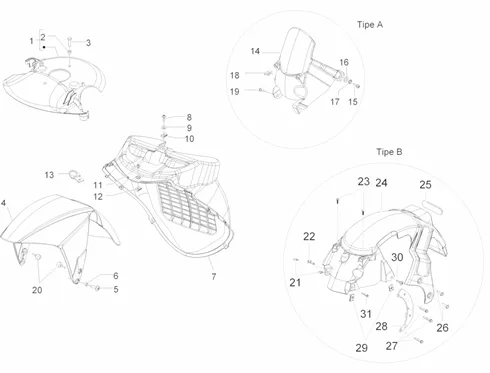

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/162/Runner_50_SP_2010-2012_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/0/8/img/90408.jpg)
1 |
PROTECTOR/FRONT MUDGUARD SOUS FORK OEM PIAGGIO 50 NRG 2005 >/GILERA 50-125 RUNNER 2005 >-668566 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
2 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
3 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
||||||
4 |
FRONT MUDGUARD OEM PIAGGIO GILERA 50-125 RUNNER LATE MODEL UNPAINTED-647590 More informationQuantity required : 1 |
||||||
|
4 |
6475900090 - GARDE BOUE AV RUNNER RST More informationQuantity required : 1 |
||||||
|
4 |
64759000AO - GARDE BOUE AV More informationQuantity required : 1 |
||||||
|
4 |
64759000BR - GARDE BOUE AV More informationQuantity required : 1 |
||||||
|
4 |
64759000H4 - GARDE BOUE AV More informationQuantity required : 1 |
||||||
|
4 |
FRONT MUDGUARD OEM PIAGGIO GILERA 50-125 RUNNER LATE MODEL UNPAINTED-647590 More informationQuantity required : 1 |
||||||
|
4 |
64759000R7 - GARDE BOUE AV RUNNER RST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
5 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 4 |
||||||
|
6 |
259828-WASHER More informationQuantity required : 4 |
||||||
|
7 |
624425000C-LOGEMENT WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/1/img/69101.jpg)
8 |
SCREW CRUCIFORME (5X17) OEM PIAGGIO COMMON A LA RANGE-834065 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
9 |
WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
10 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
11 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
13 |
949393-PLATE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/5/img/70915.jpg)
14 |
PROTECTOR-MUD ENGINE OEM PIAGGIO 50 NRG 2005 >/GILERA 50 RUNNER 2005 >-959440000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/7/img/65397.jpg)
15 |
SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
16 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
17 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
|
18 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
19 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
|
20 |
195700 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
21 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
|
22 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
23 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/1/2/img/90612.jpg)
24 |
MUDGUARD/LECHE REAR WHEEL OEM PIAGGIO 50 NRG 2007 >/GILERA 50 RUNNER 2010 >-672045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
25 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
26 |
SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
27 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/8/5/0/img/89850.jpg)
28 |
BRACKET DE REAR MUDGUARD OEM PIAGGIO 50 NRG/GILERA 50 RUNNER-657504 More informationQuantity required : 1 |
||||||
|
29 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/9/0/4/img/90904.jpg)
30 |
SCREW CRUCIFORME (6X55) DE AIR FILTER OEM PIAGGIO 300 MP3, 300 GTS, 50 NRG-672916 More informationQuantity required : 1 |
||||||
|
31 |
SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804 More informationQuantity required : 1 |
