Vehicle Exploded View - GILERA RUNNER 50 SP 2008-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

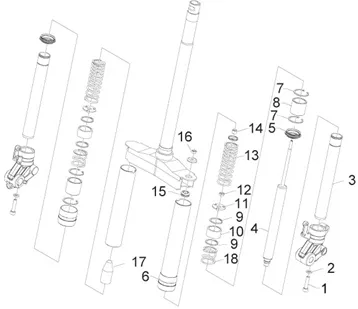

Suspensions - roues : 04.05 COMPOSANTS DE LA FOURCHE WUXI TOP
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/161/Runner_50_SP_2008-2009_04.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
1 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-599009 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
2 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 2 |
||||||
3 |
599962-ROD GAU. More informationQuantity required : 1 |
||||||
|
3 |
599963 - TIGE DR. More informationQuantity required : 1 |
||||||
|
4 |
599972 - CARTOUCHE FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/7/0/2/img/82702.jpg)
5 |
BUSH OF FORK WUXI TOP OEM PIAGGIO 50 NRG POWER 2007 > 2017-599969 More informationQuantity required : 2 |
||||||
|
6 |
648527-PATTES More informationQuantity required : 2 |
||||||
|
7 |
599968-CLIPS More informationQuantity required : 4 |
||||||
|
8 |
599964-HUB More informationQuantity required : 2 |
||||||
|
9 |
599967 - CLIPS More informationQuantity required : 4 |
||||||
|
10 |
599965-HUB More informationQuantity required : 2 |
||||||
|
11 |
648533 - BOULON FOURCHE More informationQuantity required : 2 |
||||||
|
12 |
648537-NUT More informationQuantity required : 1 |
||||||
|
13 |
599970-SPRING More informationQuantity required : 2 |
||||||
|
14 |
599974-SPACER More informationQuantity required : 2 |
||||||
|
15 |
599973-RUBBER MOUNT FOURCH More informationQuantity required : 2 |
||||||
|
16 |
648540-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/7/0/4/img/82704.jpg)
17 |
BUFFER DE FORK WUXI TOP OEM PIAGGIO 50 NRG DD 2007 > 2017-599971 More informationQuantity required : 1 |
||||||
|
18 |
599966-SPRING More informationQuantity required : 2 |
