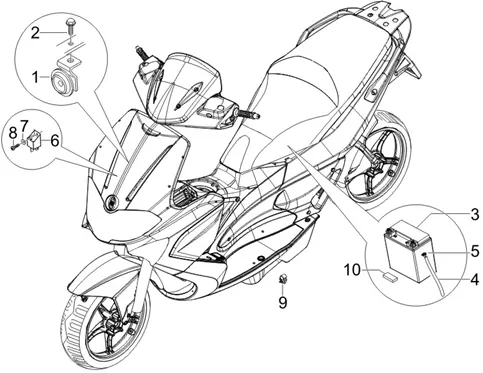

Installation électrique : 06.05 RELAIS BATTERIE AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/161/Runner_50_SP_2008-2009_06.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/2/img/67172.jpg)
1 |
AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
3 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
4 |
294485-TUYAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/2/img/67822.jpg)
5 |
639082-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
6 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
7 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
8 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
9 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/1/img/67281.jpg)
10 |
BUFFER MOUSSE OEM PIAGGIO COMMON A LA RANGE-583310 More informationQuantity required : 2 |
