Vehicle Exploded View - GILERA RUNNER 50 SP 2008-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

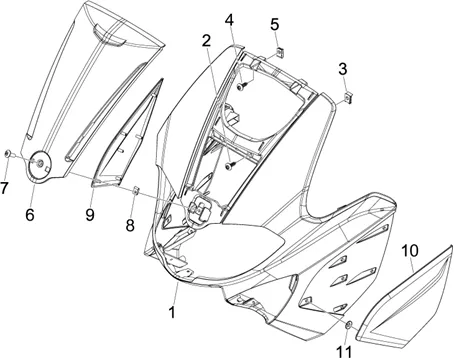

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/161/Runner_50_SP_2008-2009_02.26.PNG)
1 |
654985-LEG SHIELD AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/2/8/img/88528.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> WHITE 544 -65498500BR More informationQuantity required : 1 |
|||||||||
|
1 |
65498500EU - TABLIER AV More informationQuantity required : 1 |
|||||||||
|
1 |
65498500NG - TABLIER AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/3/4/img/88534.jpg)
1 |
FRONT PANEL FRONT OEM PIAGGIO GILERA 50-125 RUNNER 2007 > BLACK 80/B-65498560NI More informationQuantity required : 1 |
|||||||||
|
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> RED 894 -65498500R7 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
2 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
|
6 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER RAW TO BE PAINT -655107 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/3/1/img/88631.jpg)
6 |
FRONT PANEL FRONT CENTRE OEM PIAGGIO GILERA 50-125 RUNNER BLACK 94-6551076090 More informationQuantity required : 1 |
|||||||||
|
6 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER RED 894 -65510700R7- More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
|||||||||
|
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
|
9 |
65504300EU - FLANC DROIT More informationQuantity required : 1 |
|||||||||
|
9 |
65504300R7-SIDE PANEL RIGHT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/8/7/img/93687.jpg)
9 |
COVER RIGHT DE FRONT PANEL FRONT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949402000G More informationQuantity required : 1 |
|||||||||
|
10 |
65504400EU - FLANC GAUCHE More informationQuantity required : 1 |
|||||||||
|
10 |
65504400R7 - FLANC GAUCHE More informationQuantity required : 1 |
|||||||||
|
10 |
COVER LEFT DE FRONT PANEL FRONT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949403000G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/8/3/img/74283.jpg)
11 |
WASHER/CLIPS DE BLOCAGE OEM PIAGGIO COMMON A TOUTE LA RANGE-085508 More informationQuantity required : 12 |
|||||||||
