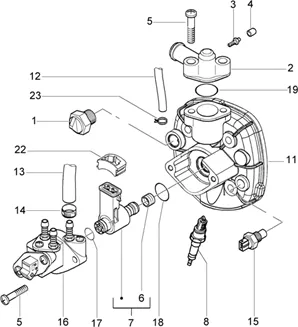

Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005 GILERA

Moteur : T6 ENSEMBLE CULASSE
Ensemble culasse
Search
CALORSTAT/THERMOSTAT OEM DERBI 50 SENDA 2003 >/PIAGGIO 50 NRG, ZIP LIQUIDE/GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR LIQUIDE-483395

1
P2R reference P2R reference 66631
Maker reference Maker reference 483395

CALORSTAT/THERMOSTAT OEM DERBI 50 SENDA 2003 >/PIAGGIO 50 NRG, ZIP LIQUIDE/GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR LIQUIDE-483395

More information

Quantity required : 1

832262 - RACCORD

2
P2R reference P2R reference 68996
Maker reference Maker reference 832262

832262 - RACCORD

More information

Quantity required : 1

SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045

3
P2R reference P2R reference 66370
Maker reference Maker reference 430045

SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045

More information

Quantity required : 1

063435-CAPUCHON

4
P2R reference P2R reference 65657
Maker reference Maker reference 0634355

063435-CAPUCHON

More information

Quantity required : 1

SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597

5
P2R reference P2R reference 65385
Maker reference Maker reference 0155975

SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597

More information

Quantity required : 4

GASKET D'INJECTEUR D'AIR OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION-834176

6
P2R reference P2R reference 69104
Maker reference Maker reference 834176

GASKET D'INJECTEUR D'AIR OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION-834176

More information

Quantity required : 1

AIR INJECTOR "PIAGGIO GENUINE PART" 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -829480

7
P2R reference P2R reference 68845
Maker reference Maker reference 829480

AIR INJECTOR "PIAGGIO GENUINE PART" 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -829480

More information

Quantity required : 1

438074 - BOUGIE CHAMPION RG6YCA

8
P2R reference P2R reference 66530
Maker reference Maker reference 438074

438074-SPARK PLUG CHAMPION RG6YCA

More information

Quantity required : 1

CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -8302025

11
P2R reference P2R reference 68900
Maker reference Maker reference 8302025

CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -8302025

More information

Quantity required : 1

433880 - TUYAU

12
P2R reference P2R reference 66441
Maker reference Maker reference 433880

433880-HOSE

More information

Quantity required : 1

830672 - TUYAU AIR

13
P2R reference P2R reference 68932
Maker reference Maker reference 830672

830672-HOSE AIR

More information

Quantity required : 1

CLAMP (12-22MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001913

14
P2R reference P2R reference 72874
Maker reference Maker reference CM001913

CLAMP (12-22MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001913

More information

Quantity required : 2

SONDE DE TEMPERATURE OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR H2O INJECTION-830093

15
P2R reference P2R reference 68893
Maker reference Maker reference 830093

SONDE DE TEMPERATURE OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR H2O INJECTION-830093

More information

Quantity required : 1

INJECTEUR OEM PIAGGIO 50 NRG INJECTION 2003 >/GILERA 50 RUNNER INJECTION 2003 >/APRILIA 50 SR DITECH 2003 >-841308

16
P2R reference P2R reference 69184
Maker reference Maker reference 841308

INJECTEUR OEM PIAGGIO 50 NRG INJECTION 2003 >/GILERA 50 RUNNER INJECTION 2003 >/APRILIA 50 SR DITECH 2003 >-841308

More information

Quantity required : 1

O-RING INJECTEUR (14. 4X18. 2X2. 5) OEM PIAGGIO NRG 2005 > 2011/GILERA RUNNER 2005 > 2011/APRILIA SR50 2004 > 2014-830433

17
P2R reference P2R reference 68916
Maker reference Maker reference 830433

O-RING INJECTEUR (14. 4X18. 2X2. 5) OEM PIAGGIO NRG 2005 > 2011/GILERA RUNNER 2005 > 2011/APRILIA SR50 2004 > 2014-830433

More information

Quantity required : 1

O-RING (14. 6X20. 8X3. 4) OEM PIAGGIO COMMON A LA RANGE-830434

18
P2R reference P2R reference 68917
Maker reference Maker reference 830434

O-RING (14. 6X20. 8X3. 4) OEM PIAGGIO COMMON A LA RANGE-830434

More information

Quantity required : 1

O-RING (22X27. 5X2. 5) FITTING SORTIE WATER OEM PIAGGIO NRG 2005 > 2011/GILERA RUNNER 2005 > 2011/APRILIA SR50 2004 > 2014-289514

19
P2R reference P2R reference 66224
Maker reference Maker reference 289514

O-RING (22X27. 5X2. 5) FITTING SORTIE WATER OEM PIAGGIO NRG 2005 > 2011/GILERA RUNNER 2005 > 2011/APRILIA SR50 2004 > 2014-289514

More information

Quantity required : 1

19
P2R reference P2R reference
Maker reference Maker reference 2898545

830585 - JOINT SPIE

21
P2R reference P2R reference 68928
Maker reference Maker reference 830585

830585 - JOINT SPIE

More information

Quantity required : 1

RUBBER ETANCHEITE INJECTEUR OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION-829483

22
P2R reference P2R reference 68846
Maker reference Maker reference 829483

RUBBER ETANCHEITE INJECTEUR OEM PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION-829483

More information

Quantity required : 1

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

23
P2R reference P2R reference 72888
Maker reference Maker reference CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

More information

Quantity required : 2
