Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

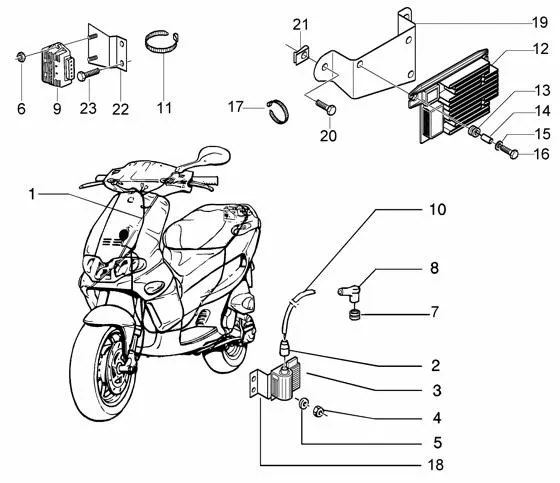

Connexions électriques : T50 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/656/Runner_50_Purejet_1998-2005_T50.PNG)
1 |
584605 - FAISCEAU CABLES More informationQuantity required : 1 |
|||||||||
|
3 |
830094 - BOBINE H.T. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/8/7/7/img/73877.jpg)
4 |
NUT M4 OEM PIAGGIO COMMON A LA RANGE-020004 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/3/img/65343.JPG)
5 |
WASHER EVENTAIL (4. 2X8X1. 1) OEM PIAGGIO COMMON A LA RANGE-012531 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
6 |
241937 - ECROU More informationQuantity required : 2 |
|||||||||
|
7 |
COLLIER |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/4/img/65854.jpg)
8 |
ANTIPARASITE OEM PIAGGIO 350 BEVERLY, X10 2012 >-1D000275 More informationQuantity required : 1 |
|||||||||
|
9 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
10 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
|||||||||
|
12 |
640705 - DISPOSITIF ELECTR.IMM. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
13 |
RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163 More informationQuantity required : 3 |
|||||||||
|
14 |
217164 - ENTRETOISE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
15 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 3 |
|||||||||
|
16 |
031059 - BOULON S03105900 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
17 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
|||||||||
|
18 |
583817 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
19 |
583843 - EQUERRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
20 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
21 |
NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224 More informationQuantity required : 2 |
|||||||||
|
22 |
583917 - EQUERRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
23 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 2 |
|||||||||
