Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

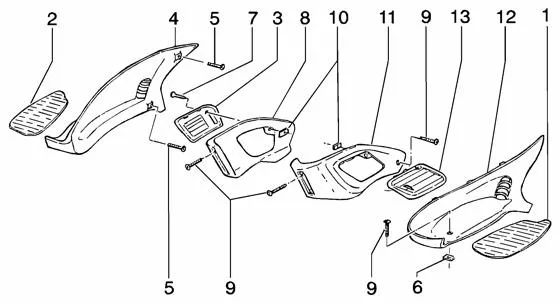

Châssis : T27 CARÉNAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/656/Runner_50_Purejet_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/8/img/78078.jpg)
1 |
MAT LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-299775 More informationQuantity required : 1 |
||||||
2 |
RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/4/0/img/80640.jpg)
3 |
GRILLE AERATION LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2004-5756580028 More informationQuantity required : 1 |
||||||
|
3 |
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028- More informationQuantity required : 1 |
||||||
|
4 |
FOOTREST LEFT OEM PIAGGIO 50-125 RUNNER-298133000P More informationQuantity required : 1 |
||||||
|
4 |
298134000P - REPOSE PIED D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
7 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 1 |
||||||
|
8 |
298893000P - PRISE AIR DRT NOIR More informationQuantity required : 1 |
||||||
|
8 |
PRISE AIR |
||||||
|
8 |
62284300BH - PRISE AIR DRT More informationQuantity required : 1 |
||||||
|
9 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
|
11 |
298892000P - PRISE AIR GAUCHE NOIR More informationQuantity required : 1 |
||||||
|
11 |
PRISE AIR |
||||||
|
11 |
62284400BH - PRISE AIR GAU More informationQuantity required : 1 |
||||||
|
12 |
FOOTREST LEFT OEM PIAGGIO 50-125 RUNNER-298133000P More informationQuantity required : 1 |
||||||
|
12 |
298134000P - REPOSE PIED D More informationQuantity required : 1 |
||||||
|
13 |
GRILLE AERATION LEFT OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2004-5756580028 More informationQuantity required : 1 |
||||||
|
13 |
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028- More informationQuantity required : 1 |
