Vehicle Exploded View - GILERA RUNNER 50 Pure Jet ST 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

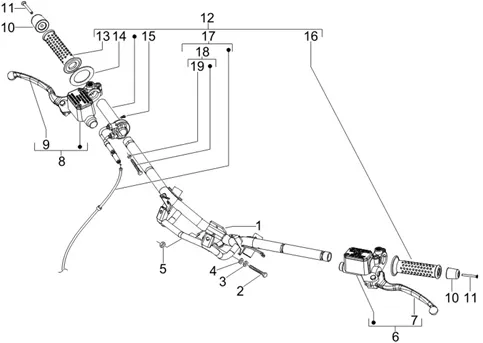

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/159/Runner_50_Pure_Jet_ST_2008_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/0/6/img/88606.jpg)
1 |
HANDLEBAR OEM PIAGGIO 50 NRG POWER 2005 >/GILERA 50 RUNNER 2005 >-6550825 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
3 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
4 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/8/img/72988.jpg)
6 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO 125-300 VESPA GTS WITHOUT ABS 2016 <, 50 NRG POWER 2005/GILERA 50 RUNNER 2005-CM074801 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
7 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/9/img/72989.jpg)
8 |
BRAKE MASTER CYLINDER FRONT HENG-TONG WITHOUT ABS OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA SPRINT, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER/GILERA 50-125 RUNNER-CM074901 More informationQuantity required : 1 |
||||||
|
9 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, VESPA LX, MEDLEY, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER LEFT/RIGHT-497042 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/3/9/0/img/88390.jpg)
10 |
HANDLEBAR END BLACK OEM PIAGGIO 300 MP3 YOURBAN, 125-300 X7/GILERA 500 FUOCO, 125 RUNNER-654515 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
11 |
SCREW HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-576836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/4/5/1/img/95451.jpg)
12 |
THROTTLE GRIP COMPLETE OEM PIAGGIO GILERA 50 RUNNER 2005 >-CM060971 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
13 |
REVETEMENT DE GRIP RIGHT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271453 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
14 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
15 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
16 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/7/6/0/img/93760.jpg)
17 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DE LA GRIP AU REPARTITEUR) OEM PIAGGIO GILERA 50 RUNNER 2015 >-949592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/8/img/66078.jpg)
18 |
TENDEUR/SCREW OF REGLAGE CABLE (6X16) OEM PIAGGIO COMMON A LA RANGE-269145 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
19 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
