Vehicle Exploded View - GILERA RUNNER 50 Pure Jet ST 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

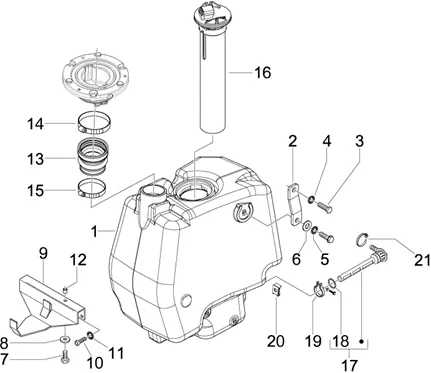

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/159/Runner_50_Pure_Jet_ST_2008_02.47.PNG)
1 |
624265 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
624090-BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
3 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
4 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/4/img/65344.jpg)
5 |
WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
6 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
7 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
7 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
8 |
WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950 More informationQuantity required : 1 |
||||||
|
9 |
624295-BRACKET TANK D'ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
10 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 2 |
||||||
|
11 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
|
12 |
623162-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/6/5/img/91465.jpg)
13 |
SLEEVE DE FUEL TANK OEM PIAGGIO 125-300-350 BEVERLY, 125 MEDLEY, 50 NRG POWER/GILERA 50-125 RUNNER-673778 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/9/img/72879.JPG)
14 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE APRILIA/GILERA-CM001920 More informationQuantity required : 1 |
||||||
|
15 |
CM001919-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/8/1/img/201781.jpg)
16 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
|
16 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/2/img/149102.jpg)
17 |
FITTING/ROBINET DE FUEL TANK OEM PIAGGIO 125 X8, X9, X-EVO, MP3, BEVERLY-674593 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
18 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
19 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
21 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 3 |
