Vehicle Exploded View - GILERA RUNNER 50 Pure Jet ST 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

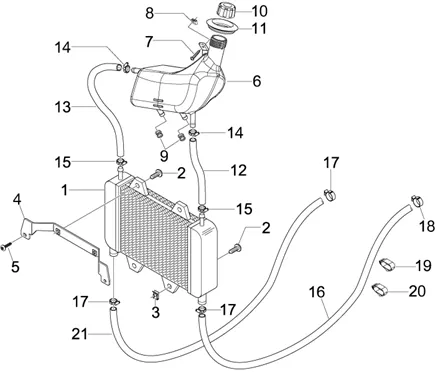

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/159/Runner_50_Pure_Jet_ST_2008_02.55.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/4/img/78064.jpg)
1 |
COOLING RADIATOR "PIAGGIO GENUINE PART" 50 ZIP SP/GILERA 50 RUNNER, DNA -299389- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
4 |
949370-CALIPER RADIATOR More informationQuantity required : 1 |
||||||
|
5 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/7/5/img/89375.jpg)
6 |
VASE EXPANSION/TANK LIQUIDE DE REFOIDISSEMENT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-656538 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
7 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
9 |
RUBBER ANTI-VIBRATIONS OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
10 |
CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
11 |
GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737 More informationQuantity required : 1 |
||||||
|
12 |
CM007013-HOSE RETOUR RADIATOR-TANK EXP. More informationQuantity required : 1 |
||||||
|
13 |
CM007013-HOSE RETOUR RADIATOR-TANK EXP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
14 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
||||||
|
15 |
624252-HOSE WATER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/4/1/img/204741.jpg)
15 |
HOSE CLAMP HOSE (15. 7) OEM PIAGGIO COMMON A LA RANGE-CM0019026 More informationQuantity required : 2 |
||||||
|
15 |
HOSE CLAMP HOSE (15. 7) OEM PIAGGIO COMMON A LA RANGE-CM0019026 More informationQuantity required : 2 |
||||||
|
16 |
949629-HOSE WATER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
17 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/0/img/72870.jpg)
18 |
CLAMP HOSE (D 27. 1) OEM PIAGGIO COMMON A LA RANGE-CM001909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
19 |
CLAMP PINCE RETENUE HOSE OEM PIAGGIO COMMON A LA RANGE-CM006902 More informationQuantity required : 1 |
||||||
|
20 |
CM006906-SPRING More informationQuantity required : 1 |
||||||
|
21 |
624252-HOSE WATER More informationQuantity required : 1 |
