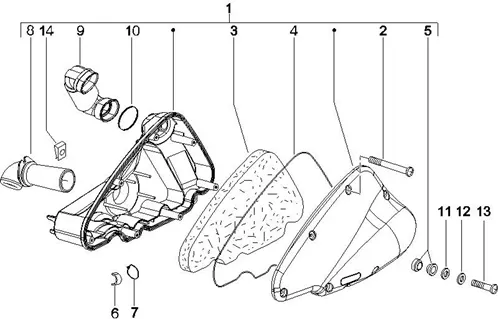

Vehicle Exploded View - GILERA RUNNER 50 Pure Jet SC 2006 GILERA

Moteur : 01.45 FILTRE À AIR
Filtre à air
Search
HOUSING AIR FILTER OEM PIAGGIO 50 TYPHOON, NRG 1998 > 2005, NRG INJECTION 2005/GILERA 50 STALKER, RUNNER 1998 > 2005, RUNNER INJECTION 2005 >-845662

1
P2R reference P2R reference 93021
Maker reference Maker reference 845662

HOUSING AIR FILTER OEM PIAGGIO 50 TYPHOON, NRG 1998 > 2005, NRG INJECTION 2005/GILERA 50 STALKER, RUNNER 1998 > 2005, RUNNER INJECTION 2005 >-845662

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

2
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 6

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) SCOOT OEM PIAGGIO 50 NRG 1998 > 2005, NRG INJECTION, TYPHOON 1998 > 2003/GILERA 50 STALKER 1998 > 2005, RUNNER 1998 > 2005, RUNNER INJECTION 2005 > 2011-4797480P

3
P2R reference P2R reference 157084
Maker reference Maker reference 4797480P

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) SCOOT OEM PIAGGIO 50 NRG 1998 > 2005, NRG INJECTION, TYPHOON 1998 > 2003/GILERA 50 STALKER 1998 > 2005, RUNNER 1998 > 2005, RUNNER INJECTION 2005 > 2011-4797480P

More information

Quantity required : 1

GASKET CAPOT DE AIR FILTER OEM PIAGGIO 50 NRG 2011 <-479749

4
P2R reference P2R reference 78921
Maker reference Maker reference 479749

GASKET CAPOT DE AIR FILTER OEM PIAGGIO 50 NRG 2011 <-479749

More information

Quantity required : 1

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

5
P2R reference P2R reference 68888
Maker reference Maker reference 830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

More information

Quantity required : 4

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

6
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 1

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

7
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

More information

Quantity required : 2

829701 - TUYAU

8
P2R reference P2R reference 92823
Maker reference Maker reference 829701

829701-HOSE

More information

Quantity required : 1

959253 - PRISE AIR

9
P2R reference P2R reference 93842
Maker reference Maker reference 959253

959253-PRISE AIR

More information

Quantity required : 1

959254 - CIRCLIPS PRISE AIR

10
P2R reference P2R reference 93843
Maker reference Maker reference 959254

959254-CIRCLIPS PRISE AIR

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

11
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 2

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

12
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

13
P2R reference P2R reference 65448
Maker reference Maker reference 0186405

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2
