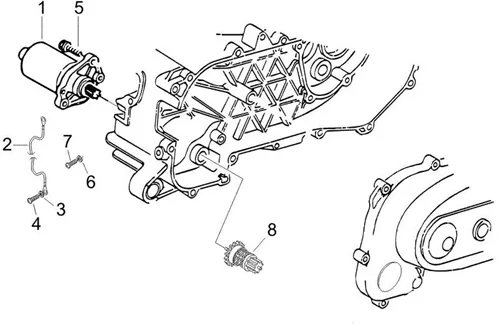

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/158/Runner_50_Pure_Jet_SC_2006_01.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/9/img/70939.jpg)
1 |
STARTER MOTOR SCOOT OEM PIAGGIO 50 FLY 4T 2005 >, LIBERTY 4T2005 >, NRG PURE-JET, ZIP 4T 2000 >/GILERA 50 RUNNER PURE-JET/VESPA LX 4T2005 >, PRIMAVERA 4T2013 >, VESPA S 4T 2008 >-96921R More informationQuantity required : 1 |
||||||
2 |
642292-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
3 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
4 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
5 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
5 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
6 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
7 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/5/img/66215.jpg)
8 |
LANCEUR/RENVOI DE STARTER MOTOR SCOOT OEM PIAGGIO 50 4T FLY 2005 >, LIBERTY 2005 >, VESPA LX 2005 >, PRIMAVERA 2013 >, VESPA SPRINT 2014 >, NRG PURE-JET 2005 >, ZIP 2000 >/APRILIA 50 RS 2006 >-289202 More informationQuantity required : 1 |
