Vehicle Exploded View - GILERA RUNNER 50 Pure Jet SC 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

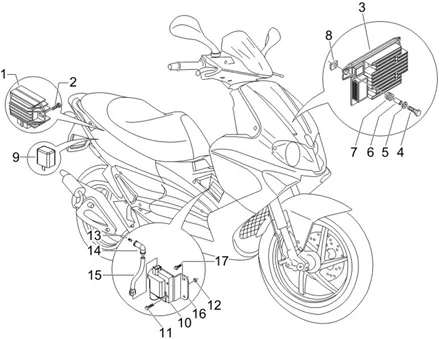

Installation électrique : 06.06 REGULATEURS DE TENSION CENTRALES ELECTRONIQUES BOBINE H T
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/158/Runner_50_Pure_Jet_SC_2006_06.06.PNG)
1 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
2 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
|||||||||
|
3 |
640705 - DISPOSITIF ELECTR.IMM. More informationQuantity required : 1 |
|||||||||
|
3 |
639702 - DISPOSITIF ELECTR.IMM. More informationQuantity required : 1 |
|||||||||
|
4 |
031059 - BOULON S03105900 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
4 |
RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
5 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 3 |
|||||||||
|
5 |
217164 - ENTRETOISE More informationQuantity required : 3 |
|||||||||
|
6 |
031059 - BOULON S03105900 More informationQuantity required : 3 |
|||||||||
|
6 |
217164 - ENTRETOISE More informationQuantity required : 3 |
|||||||||
|
7 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 3 |
|||||||||
|
7 |
RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/0/8/8/img/206088.jpg)
9 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
|||||||||
|
9 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
|||||||||
|
10 |
830094 - BOBINE H.T. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
11 |
SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121 More informationQuantity required : 2 |
|||||||||
|
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/4/img/65374.jpg)
13 |
COSSE CABLE OEM PIAGGIO COMMON A LA RANGE-015014 More informationQuantity required : 1 |
|||||||||
|
14 |
584445 - CAPUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
15 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
|||||||||
|
15 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620 More informationQuantity required : 2 |
|||||||||
|
16 |
SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121 More informationQuantity required : 2 |
|||||||||
|
16 |
949383 - ETRIER FIX BOBINE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
17 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 2 |
|||||||||
