Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

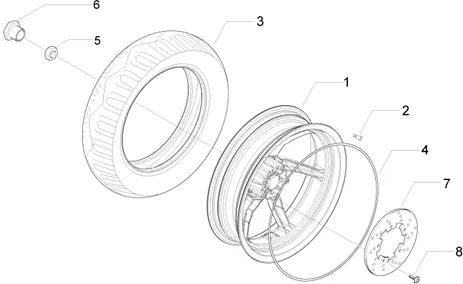

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/156/Runner_50_Pure_Jet_2010-2011_04.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/9/6/img/89996.jpg)
1 |
RIM/REAR WHEEL OEM PIAGGIO 50 NRG 2007 >/GILERA 50 RUNNER 2010 >-6661790090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
2 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
3 |
949621-TYRE 140/60-13 SAVA More informationQuantity required : 1 |
||||||
|
3 |
PNEU ARR PIRELLI 140/60-13 |
||||||
|
4 |
64773600L1-BANDE DECORATION RUNNER More informationQuantity required : 2 |
||||||
|
4 |
64773600RL - BANDE DECORATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/3/img/146193.jpg)
5 |
NUT FLANGE (16X1, 25) OEM PIAGGIO COMMON A LA RANGE-1C002565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/1/5/img/67015.jpg)
6 |
CAP DE WHEEL RRIERE OEM PIAGGIO 50 NRG, RUNNER-562129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/1/img/67041.jpg)
7 |
BRAKE DISC SCOOT OEM PIAGGIO 50 NRG AR, ZIP 2000 > AV/GILERA 50 STALKER AR, RUNNER AR (5 TROUS)-56396R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 5 |
