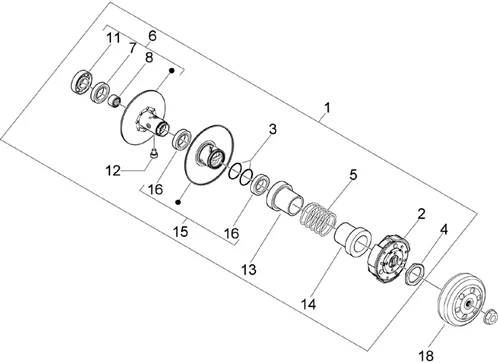

Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011 GILERA

Moteur : 01.14 POULIE ENTRAINEE
Poulie entrainee
Search
PULLEY RECEPTRICE OEM PIAGGIO 50 TYPHOON 2006 > 2010, NRG 2005 >, ZIP 2000 >, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER 2005 >, DNA 2006 >/APRILIA 50 SR H2O 2004 >-CM100109

1
P2R reference P2R reference 73026
Maker reference Maker reference CM100109

PULLEY RECEPTRICE OEM PIAGGIO 50 TYPHOON 2006 > 2010, NRG 2005 >, ZIP 2000 >, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER 2005 >, DNA 2006 >/APRILIA 50 SR H2O 2004 >-CM100109

More information

Quantity required : 1

GROUP CLUTCH OEM PIAGGIO 50 FLY, NRG, ZIP, TYPHOON, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER/APRILIA 50 SR H2O-CM1002045

2
P2R reference P2R reference 73031
Maker reference Maker reference CM1002045

GROUP CLUTCH OEM PIAGGIO 50 FLY, NRG, ZIP, TYPHOON, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER/APRILIA 50 SR H2O-CM1002045

More information

Quantity required : 1

GASKET CLUTCH OEM PIAGGIO 50-125 COMMON A LA RANGE-289840

3
P2R reference P2R reference 66231
Maker reference Maker reference 289840

GASKET CLUTCH OEM PIAGGIO 50-125 COMMON A LA RANGE-289840

More information

Quantity required : 2

NUT CLUTCH OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-289955

4
P2R reference P2R reference 66239
Maker reference Maker reference 289955

NUT CLUTCH OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-289955

More information

Quantity required : 1

SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD-478028

5
P2R reference P2R reference 66542
Maker reference Maker reference 478028

SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 50 TYPHOON, NRG, ZIP, LIBERTY, VESPA LX, VESPA-S/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR MOTARD-478028

More information

Quantity required : 1

HALF PULLEY "PIAGGIO GENUINE PART" (25KM/H) FOR ALL SCOOTER 50cc -4795526-

6
P2R reference P2R reference 66580
Maker reference Maker reference 4795526

HALF PULLEY OEM PIAGGIO (25KM/H) COMMON A LA RANGE SCOOTER 50 CC-4795526

More information

Quantity required : 1

CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE 27M-006624

7
P2R reference P2R reference 63820
Maker reference Maker reference 0066245

CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE 27M-006624

More information

Quantity required : 1

CAGE A AIGUILLES/BUSH DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289952

8
P2R reference P2R reference 66238
Maker reference Maker reference 289952

CAGE A AIGUILLES/BUSH DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289952

More information

Quantity required : 1

BEARING (12X24X6) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T ET 4T-82655R

11
P2R reference P2R reference 68608
Maker reference Maker reference 82655R

BEARING (12X24X6) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T ET 4T-82655R

More information

Quantity required : 1

PIVOT/GUIDE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-482766

12
P2R reference P2R reference 66622
Maker reference Maker reference 482766

PIVOT/GUIDE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-482766

More information

Quantity required : 3

CUP LOGEMENT SPRING COTE PULLEY CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-483443

13
P2R reference P2R reference 66632
Maker reference Maker reference 483443

CUP LOGEMENT SPRING COTE PULLEY CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-483443

More information

Quantity required : 1

CUP LOGEMENT SPRING COTE CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-487935

14
P2R reference P2R reference 66764
Maker reference Maker reference 487935

CUP LOGEMENT SPRING COTE CLUTCH OEM PIAGGIO 50 COMMON A LA RANGE-487935

More information

Quantity required : 1

HALF PULLEY RECEPTRICE MOBILE DE VARIATOR OEM PIAGGIO 50 COMMON A LA RANGE-827893

15
P2R reference P2R reference 68715
Maker reference Maker reference 827893

HALF PULLEY RECEPTRICE MOBILE DE VARIATOR OEM PIAGGIO 50 COMMON A LA RANGE-827893

More information

Quantity required : 1

289950-BUSH

16
P2R reference P2R reference 66237
Maker reference Maker reference 289950

289950-BUSH

More information

Quantity required : 2

BELL/TAMBOUR CLUTCH OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289933

18
P2R reference P2R reference 66235
Maker reference Maker reference 289933

BELL/TAMBOUR CLUTCH OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289933

More information

Quantity required : 1
