Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

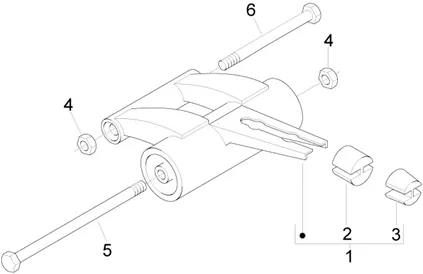

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/156/Runner_50_Pure_Jet_2010-2011_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/1/1/img/79911.jpg)
1 |
OEM MOPED SWINGARM OEM PIAGGIO 50 NRG-56345R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/0/img/66060.jpg)
2 |
RUBBER MOUNT DE OEM MOPED SWINGARM OEM PIAGGIO 50 NRG, TYPHOON, FLY, LIBERTY/GILERA 50 STALKER, RUNNER-267550 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/1/img/66061.jpg)
3 |
BUFFER/RUBBER MOUNT ARM OCSILLANT OEM PIAGGIO COMMON A LA RANGE-267589 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
4 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/2/img/67042.jpg)
5 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-563977 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
6 |
SPINDLE/SCREW ARM DE SUSPENSION (10X202) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-271807 More informationQuantity required : 1 |
