Vehicle Exploded View - GILERA RUNNER 180 FXV 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

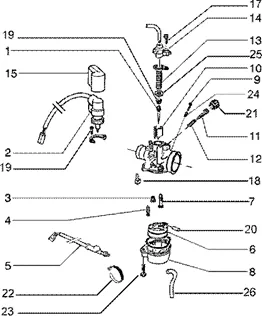

Moteur : T17 CARBURATEUR DELL'ORTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/660/Runner_180_FXV_2T_1998-2005_T17.PNG)
1 |
POINTEAU |
||||||
|
1 |
AIGUILLE FXT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/2/img/66572.jpg)
2 |
STARTER OEM PIAGGIO 50 TYPHOON, NRG, ZIP RST, LIBERTY 2T, VESPA ET2 1998 > 2005/GILERA 50 STALKER, 50-125 RUNNER 1998 > 2005 RUNNER-479093 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/5/8/img/73058.jpg)
3 |
CM101742 - GICL.MAXI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
4 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM128501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
5 |
RESISTOR OF CARBURETTOR OEM PIAGGIO 50-125 FLY 2005 > 2011, VESPA LX 2005 >, VESPA-S 2007 >, LIBERTY 2006 > 2016-82961R6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
6 |
FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916 More informationQuantity required : 1 |
||||||
|
7 |
GICLEUR 50 100 FXT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/9/img/66659.jpg)
8 |
484369 - CUVE More informationQuantity required : 1 |
||||||
|
9 |
VIS RICHESSE RALENTI |
||||||
|
10 |
432507 - BOISSEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/7/img/68567.jpg)
10 |
SLIDE FOR CARB "PIAGGIO GENUINE PART" 125 TYPHOON 2STROKE/GILERA 125 RUNNER 2STROKE -825843 More informationQuantity required : 1 |
||||||
|
11 |
VIS |
||||||
|
11 |
CM107705 - VIS More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
432515-SPRING More informationQuantity required : 1 |
||||||
|
13 |
RESSORT |
||||||
|
13 |
|
||||||
|
14 |
COUVERCLE |
||||||
|
14 |
8253595 - CARTER More informationQuantity required : 1 |
||||||
|
15 |
CAPUCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
16 |
SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575 More informationQuantity required : 2 |
||||||
|
17 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/5/img/66485.jpg)
18 |
FITTING ARRIVE D'HUILE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-436206 More informationQuantity required : 1 |
||||||
|
19 |
AP8222674 - AGRAFE POINTEAU CONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
20 |
SPINDLE FLOTTEUR PHVA OEM PIAGGIO COMMON A LA RANGE-288881 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
22 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
23 |
SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
24 |
SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
26 |
COUDE DE CABLE DE THROTTLE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-113903 More informationQuantity required : 1 |
