Vehicle Exploded View - GILERA RUNNER 180 FXV 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

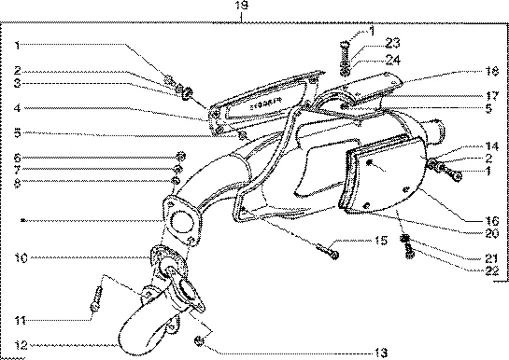

Châssis : T19/A SILENCIEUX CATALITIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/660/Runner_180_FXV_2T_1998-2005_T19_A.PNG)
1 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
2 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 3 |
||||||
|
3 |
003055-WASHER More informationQuantity required : 3 |
||||||
|
4 |
PROTECTION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/9/6/2/img/78962.jpg)
4 |
482280 - PLAQUE DE POT FX More informationQuantity required : 1 |
||||||
|
5 |
013754-WASHER S01375400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/8/img/63758.jpg)
6 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-001564 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
7 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/2/img/65422.jpg)
8 |
WASHER PLATE (8. 2X13X2) OEM PIAGGIO COMMON A LA RANGE-016604 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/7/6/img/78576.jpg)
10 |
EXHAUST GASKET "PIAGGIO GENUINE PART" 125 TYPHOON, HEXAGON 2 STROKE/GILERA 125 RUNNER 2 STROKE -432127- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
11 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 2 |
||||||
|
12 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 125 HEXAGON 2 STROKE, SKIPPER 2 STROKE/GILERA 125 RUNNER 2 STROKE -484344- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
13 |
NUT FLANGE M8 MOUNTING EXHAUST OEM PIAGGIO COMMON ALA RANGE-015341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
14 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
15 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-844483 More informationQuantity required : 2 |
||||||
|
16 |
825327 - PROTECTION More informationQuantity required : 4 |
||||||
|
17 |
Pneu s. chambre |
||||||
|
18 |
PROTECTION |
||||||
|
19 |
ECHAPPEMENT |
||||||
|
19 |
|
||||||
|
20 |
Couvercle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
21 |
GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
22 |
SCREW/CAP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-433122 More informationQuantity required : 1 |
||||||
|
23 |
RONDELLE |
||||||
|
24 |
RONDELLE |
||||||
|
24 |
RONDELLE |
