Vehicle Exploded View - GILERA RUNNER 180 FXV 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

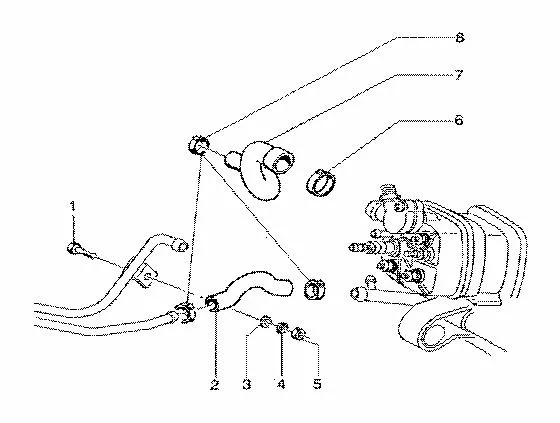

Châssis : T23 INSTALLATION DE REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/660/Runner_180_FXV_2T_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
1 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 1 |
||||||
2 |
DURITE EAU RETOUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
3 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
5 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
6 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 1 |
||||||
|
7 |
299970 - DURITE EAU COUDEE More informationQuantity required : 1 |
||||||
|
8 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 1 |
